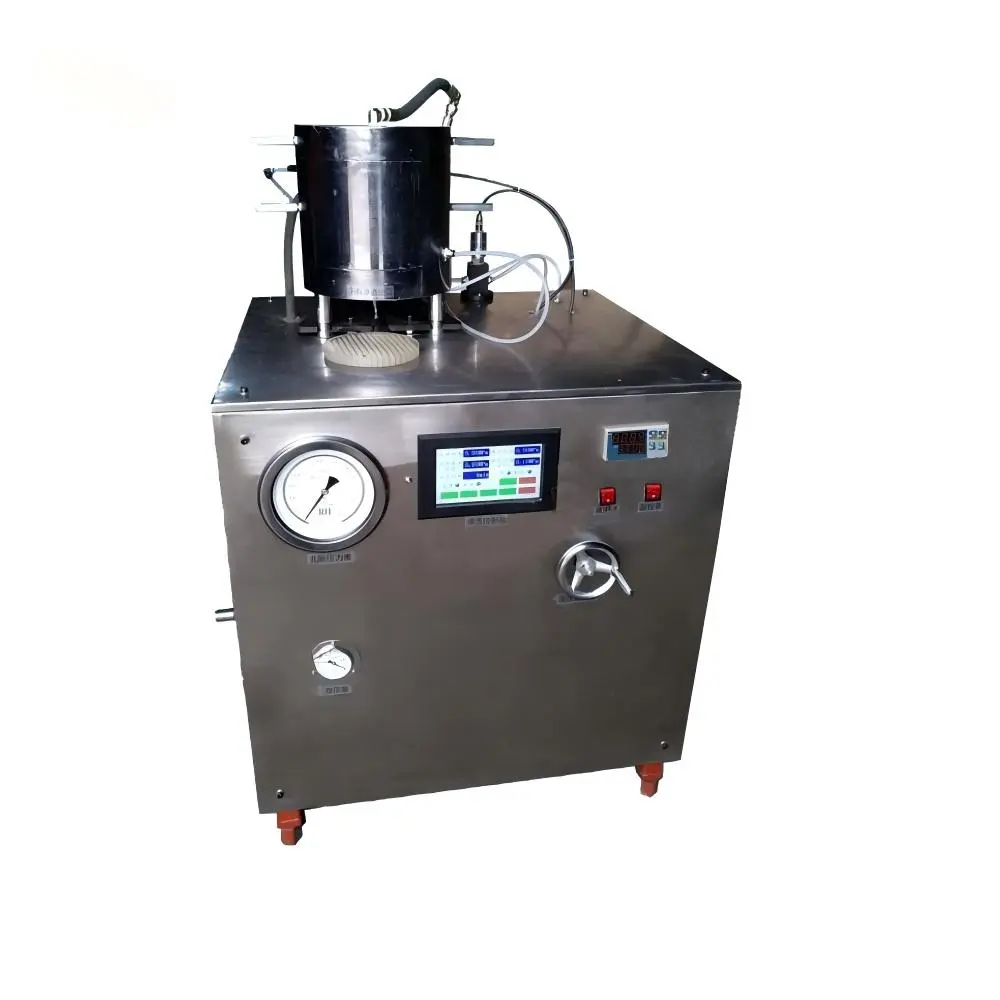

The coal and rock permeability analyzer is used to determine the permeability coefficient of coal and rock specimens that do not disintegrate when exposed to water under indoor conditions. The magnitude of permeability coefficient is determined according to Darcy's law.
The rock permeability coefficient analyzer mainly consists of four key functional parts designed for precise measurement:
Includes the permeability controller, the permeability pressure pump, the vacuum pump, and the permeability pressure chamber.
Achieves the set pressure range of the test in a short time and remains stable within the range control.
Displays the current test pressure and logs the total working time from the beginning to the end of the test run.
Engineered to adapt to various testing environments while maintaining high accuracy and system integrity.
The rock gas permeability tester (gas flowmeter and gas cylinder optional) is a specialized measuring instrument used in the petroleum industry. It is widely used in the analysis and detection of rock gas permeability in oil and gas field exploration and development research and production. Its detection data provides vital, basic parameters for the analysis, research, and evaluation of the physical properties of oil and gas reservoirs.
The pressure regulating bolt of the osmotic pressure pump has been debugged at the factory. The handwheel switch can rotate the handwheel according to the test pressure. Distilled water must be installed inside the osmotic pressure pump. If it is not used for a long time, it must be discharged through the water tank drain valve.
| 1. Working Pressure | 0-4.0MPa (Optional automatic constant pressure 0-10Mpa, 0-16Mpa, 0-40Mpa) |
| 2. Permeation Pressure | 0-3500KPa (0-3.5MPa) is Jia; Adjust the constant osmotic pressure arbitrarily |
| 3. Pressure Accuracy | Pressure continuously adjustable from 0 to 4.0Mpa with constant pressure system accuracy: ± 1% |
| 4. Sample Size | Φ 25 × 50mm (Standard); Φ 50 × 100mm; Φ 100 × 100mm (Optional) |
| 5. Pressure Regulating Cylinder | Maximum working pressure of 2.5MPa; Confining pressure can be continuously adjusted from 0-2.5MPa and can be set arbitrarily |
| 6. Vacuum Pump (Optional) | Pumping rate: 3.6/h; Ultimate vacuum: 2Pa; Voltage: 220V 50HZ; Power: 150W; Fuel consumption: 150ml |
| 7. Voltage | 380V 50Hz (Three live wires) |
| 8. Dimensions | 850 * 600 * 970mm |
| 9. Penetration Test Attachment | Measuring cylinder capacity 50ml, accuracy 0.1ml; Rock infiltration pressure chamber and specialized rubber closed lateral mold; Pressure chamber fixing device; Automatic constant pressure pump, adjustable pressure |
| 10. Optional Functions | Axial load (10KN~50KN, other specifications can be selected); Flow accumulator: temperature (℃), pressure (MPa), flow rate (factory Nm³/h), accumulation (Nm³) |
