High-Quality Asphalt Pressure Aging Vessel Manufacturers, Pricelist

The Pressure Aging Vessel (PAV) is an experimental device used to simulate the aging behavior of asphalt under heat, oxidation, and pressure during long-term use. Through this device, the aging process of asphalt can be accelerated, thereby evaluating its long-term performance.

Main features:

1. Simulate long-term aging: Simulate the aging process of asphalt on the road surface for 5-10 years through the effects of high temperature, high pressure, and oxygen.
2. Precise control: Temperature, pressure, and aging time can be precisely controlled to ensure consistency in testing conditions.
3. Efficient accelerated aging: Complete long-term aging simulation in a short period of time (usually 20 hours).
4. Safety design: Equipped with multiple safety protection devices, such as overvoltage protection, overheating protection, and automatic pressure relief function.

Send Inquiry

Product Description

Structural Composition

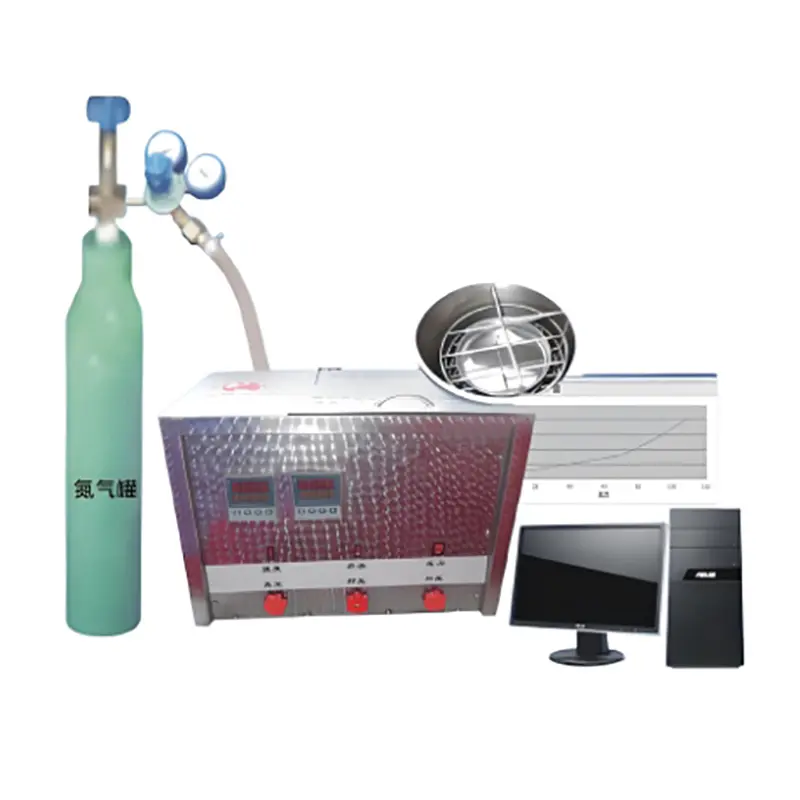

The Asphalt Pressurized Aging Vessel consists of a pressure vessel, a pressure regulator, a temperature control instrument, a compressed air bottle, etc. The pressurized Aging Vessel is connected to the computer through a serial port line, extracts test data from the tester, generates data reports and [temperature~pressure] curves, and can be printed out.

Technical Parameters

1. Pressure vessel pressure	Pressure gauge range: -0.1~10MPa; Negative and positive pressure tests can be performed, and the constant pressure can be 2.1MPa±0.02MPa if the test requirements are met
2. Container cavity size	diameter 195mm, height 275mm
3. Temperature control range	0~300℃±0.1℃ (arbitrary setting) The test temperature can be controlled at 100℃±0.1℃;
4. Heating power	1000W
5. Sample dish	10 pieces, made of stainless steel or aluminum with an inner diameter of 140×10mm, can be placed on the bracket.
6. Vacuum aging	Negative pressure 97KPa~1KPa adjustable, room temperature~260℃ adjustable
7. Nitrogen cylinder	pressure 10MPa; pressure flow adjustable (self-provided);
8. Voltage & Power	Voltage 220V, power 2000W
9. Control System	Industrial computer (optional)

Application Fields

Road Engineering Used to evaluate the durability of asphalt mixtures, provide a basis for highway design and construction, and ensure the service life and safety of roads.

Bridge Engineering Can evaluate the anti-aging performance of bridge paving asphalt, and provide a reference for bridge maintenance and renovation.

Airport Engineering Helps evaluate the anti-aging performance of airport asphalt pavement, and provides technical support for airport construction and maintenance.

Scientific Research An important experimental tool for asphalt aging mechanism research, new material development, and professional teaching practice.

Detection & Monitoring Ensures road engineering quality meets standards during the quality control and acceptance process.

Frequently Asked Questions

What is the main function of the Asphalt Pressurized Aging Vessel?

It is designed to simulate the long-term oxidative aging of asphalt binders through high temperature and pressurized air, mimicking years of service in the field.

Can the device perform both positive and negative pressure tests?

Yes, the equipment is capable of both negative pressure (97KPa~1KPa) and positive pressure tests, with a constant pressure capability of up to 2.1MPa.

Is the test data exportable for analysis?

Absolutely. The vessel connects to a computer via a serial port, allowing for the extraction of data, generation of reports, and creation of temperature-pressure curves.

What are the requirements for the sample dishes?

The system includes 10 sample dishes made of stainless steel or aluminum, with an inner diameter of 140×10mm, which fit securely on the internal bracket.

What is the temperature control precision of the instrument?

The temperature control gauge has a range of 0~300℃ with a high precision of ±0.1℃, ensuring stable and reliable test conditions.

What safety measures are involved with the pressure vessel?

The vessel is equipped with a professional pressure regulator and a high-precision pressure gauge (up to 10MPa) to ensure the safety and accuracy of high-pressure operations.
