Custom Existent Gum Content Tester (Jet Evaporation Method) ASTM D381 Manufacturer, Pricelist
1 / 1
Custom Existent Gum Content Tester (Jet Evaporation Method) ASTM D381 Manufacturer, Pricelist

Custom Existent Gum Content Tester (Jet Evaporation Method) ASTM D381 Manufacturer, Pricelist

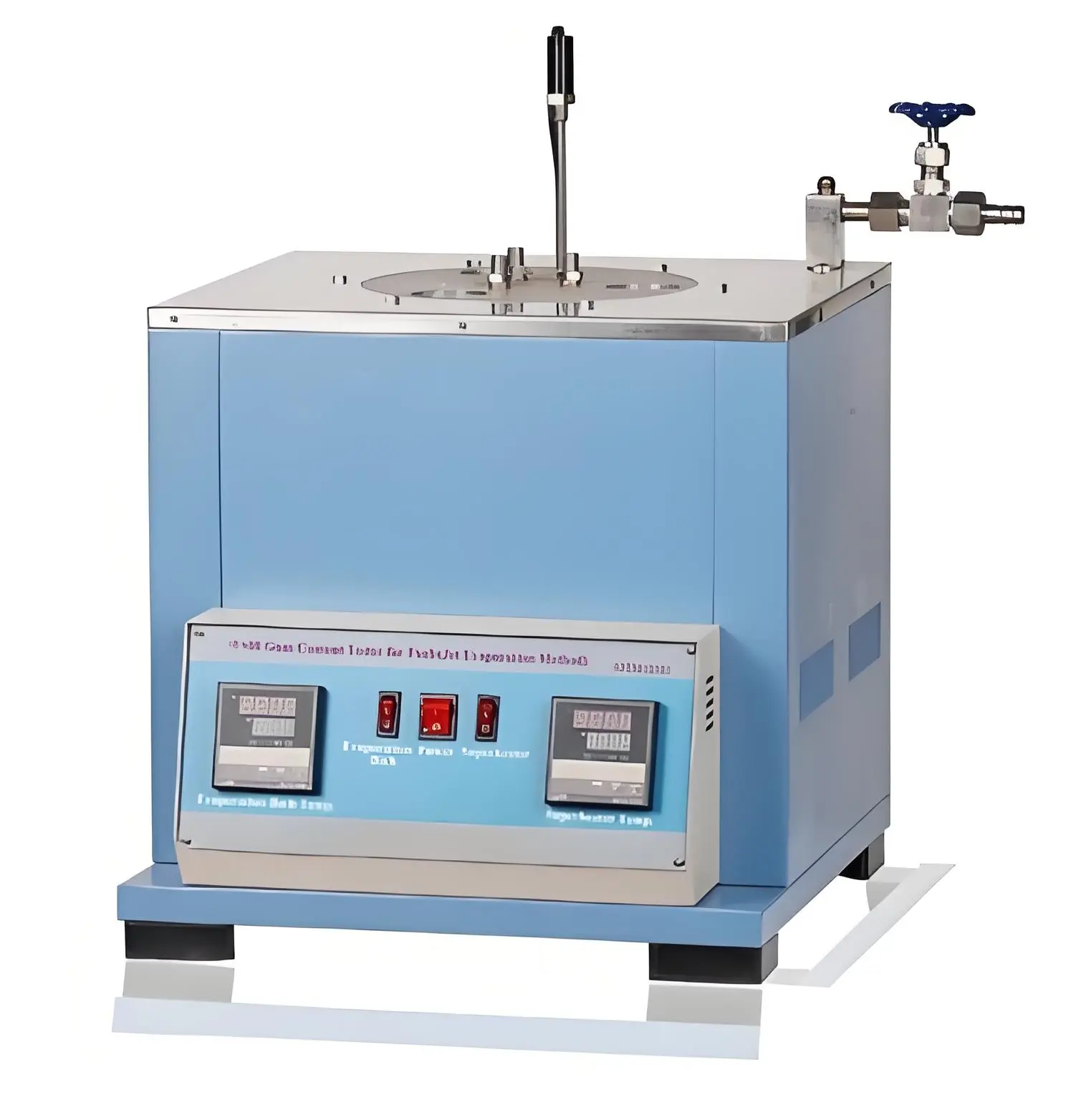

Existent Gum Tester (Jet Evaporation Method) is designed and manufactured according to GB/T 8019-2008& ASTM D381standard. Determination of the gum content at the time of the test of existent for aviation fuel and motor gasoline and other volatile fractions(including products containing alcohols,ether oxygenated compounds and sediment suppressor additives) can be performed accurately according to the standard description. Existent Gum Tester(Jet Evaporation Method) has beautiful design,generous appearance,reasonable structure design,convenient operation and accurate determination of results.

Send Inquiry

Product Description

Performance Characteristics

1
The main body of the evaporation bath is high-quality aluminum, featuring a spiral air path and a pressure equalizing chamber for uniform air or steam distribution.
2
Equipped with specialized monitoring ports: the front hole for a thermometer and the back hole for a thermocouple to ensure precision.
3
Built-in pressure management system with a pressure gauge and adjustable hand valve (Air: 0.03~0.04MPa).
4
Features a 360-degree rotating thermometer holder that moves up and down to detect the temperature of each bath hole easily.
5
Integrated stainless steel superheater structure for temperature compensation to meet strict standard requirements.

Technical Specifications

Bath Type & Size Aluminum block bath, Φ260 × 130 mm
Test Holes 3 Pieces
Cylinder Hole Size Φ51 × 70 mm
Working Temperature 60 ℃ to 165 ℃
Temperature Display Digital Display
Working Pressure 0.035 MPa (Decompression Valve)
Gas Source Requirement Compressed air > 110 L/min
Power Supply AC 220 V ± 10 %, 50 Hz; 2.5 kW
Dimensions 550 x 370 x 335 mm

Photo Details

Evaporation Bath Photo Details

Frequently Asked Questions

Q1: What is the maximum working temperature of this evaporation bath?
A: The working temperature ranges from 60 ℃ to 165 ℃, which is digitally displayed for precise monitoring.
Q2: How many samples can be tested at the same time?
A: The equipment is designed with 3 testing holes, each with a cylinder size of Φ51 × 70 mm.
Q3: What type of power supply does the unit require?
A: It requires a standard AC 220 V ± 10 %, 50 Hz power supply with a power consumption of 2.5 kW.
Q4: What material is used for the main body of the bath?
A: The main body is constructed from high-quality aluminum block, ensuring excellent heat conductivity and durability.
Q5: What are the requirements for the air source?
A: The system requires compressed air with a flow rate greater than 110 L/min and operates at a pressure of approximately 0.035 MPa.
Q6: Is the temperature sensor adjustable?
A: Yes, it features a convenient thermometer holder that can rotate 360 degrees and move up and down to detect the temperature of each bath hole accurately.
