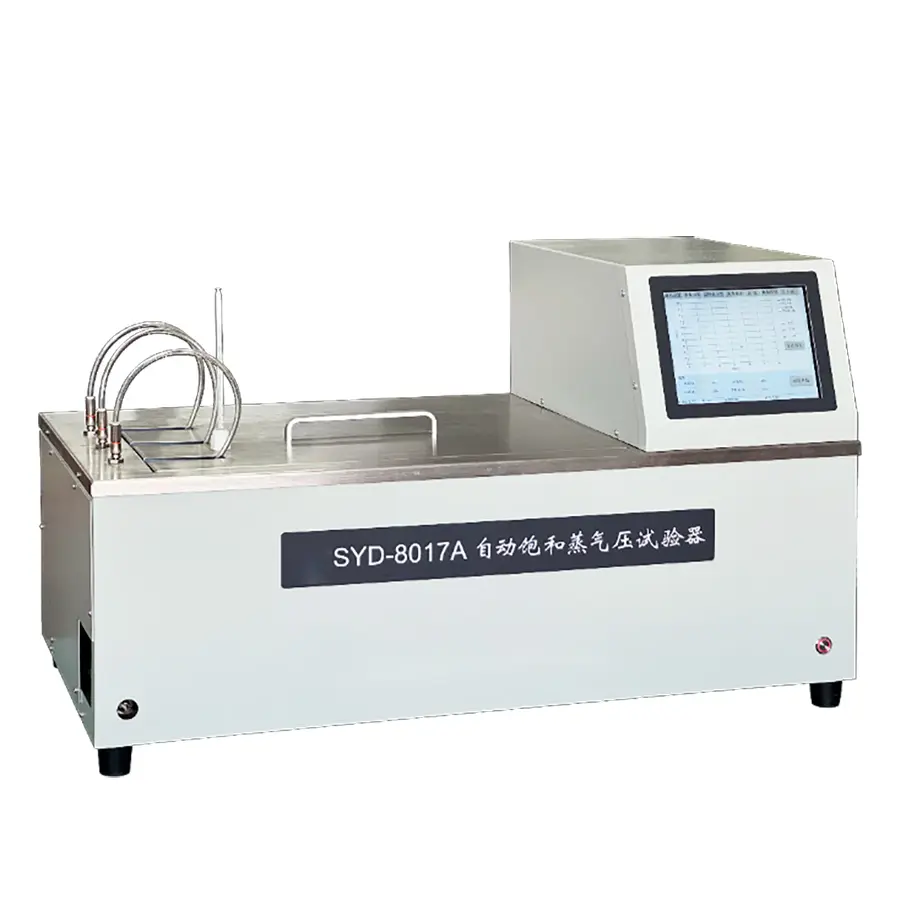

Custom SYD-8017A High Quality Automatic Vapor Pressure Tester Reid Method Astm D323 Standard Manufacturers, Supplier
1 / 1
Custom SYD-8017A High Quality Automatic Vapor Pressure Tester Reid Method Astm D323 Standard Manufacturers, Supplier

Custom SYD-8017A High Quality Automatic Vapor Pressure Tester Reid Method Astm D323 Standard Manufacturers, Supplier

This Vapor Pressure Tester  (Reid Method) is used to make determination for vapor pressure of gasoline, volatile crude oil and other volatile petroleum products. It cannot be used to determine the vapor pressure of LGP. It is fully-automatic vapor pressure tester by PC control and operation.

Send Inquiry

Product Description

Summary

This Astm D323 Vapor Pressure Tester Reid Method is made and designed as per national standard GB/T 8017 Petroleum Products- Determination of vapor pressure- Reid method. It is also fully compliant with ASTM D323 Standard Test Method for Vapor Pressure of Petroleum Products (Reid Method).
ASTM D323 Vapor Pressure Tester

Technical Parameters

Power Supply: AC(220±10%)V, 50Hz
Power Consumption: Max 1000W
Test Bomb: 3 bombs simultaneous test
Water Bath Temp: 37.8℃
Control Accuracy: ±0.1℃
Pressure Range: 0 ～ 200 kPa
Ambient Temp: 15 ～ 35 ℃
Relative Humidity: ≤ 85%
Dimension: 810mm * 440mm * 490mm
Net Weight: 47kg

Main Technical Features

  • Adopt color TFT LCD screen and touch screen with a beautiful interface design.
  • Fully automatic test process: constant temperature control, projectile rotation, pressure detection, timing, and result judgment.
  • Automatic storage of test results after completion without manual intervention.
  • Data can be queried and printed at any time via the integrated system.
  • Online pressure adjustment function to calibrate zero point and range of the pressure sensor.
  • Online temperature adjustment function to correct slight deviations caused by lead wires.
  • Reasonable actuator design with compact structure and convenient maintenance.

Frequently Asked Questions

What standards does this vapor pressure tester comply with?
The instrument is designed in strict accordance with ASTM D323 and GB/T 8017 standards for determining the vapor pressure of petroleum products using the Reid Method.
How many samples can be tested simultaneously?
The device is equipped to handle 3 test bombs at the same time, significantly improving testing efficiency.
Is the operation manual or automatic?
It is fully automatic. Once parameters are set, the instrument manages temperature, rotation, timing, and data storage without requiring operator intervention.
What is the temperature control precision of the water bath?
The water bath is maintained at a constant 37.8℃ with a high temperature control accuracy of ±0.1℃.
Does the instrument support data output?
Yes, the system allows for historical data queries and comes with a printing function for immediate result documentation.
Can the sensors be calibrated online?
Yes, the instrument features online adjustment functions for both pressure and temperature to ensure sensor accuracy and meet calibration requirements.
