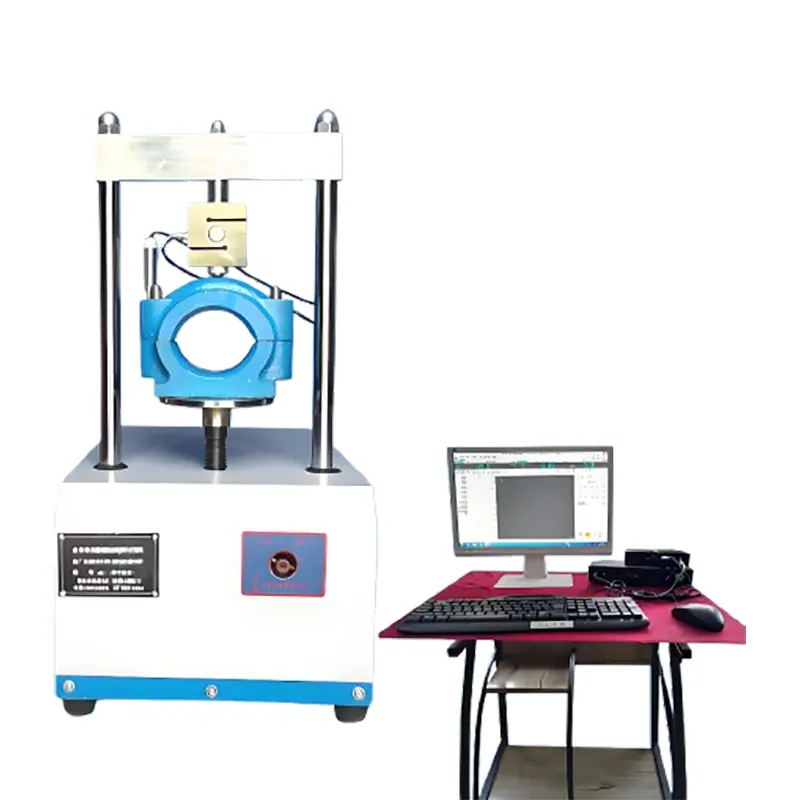

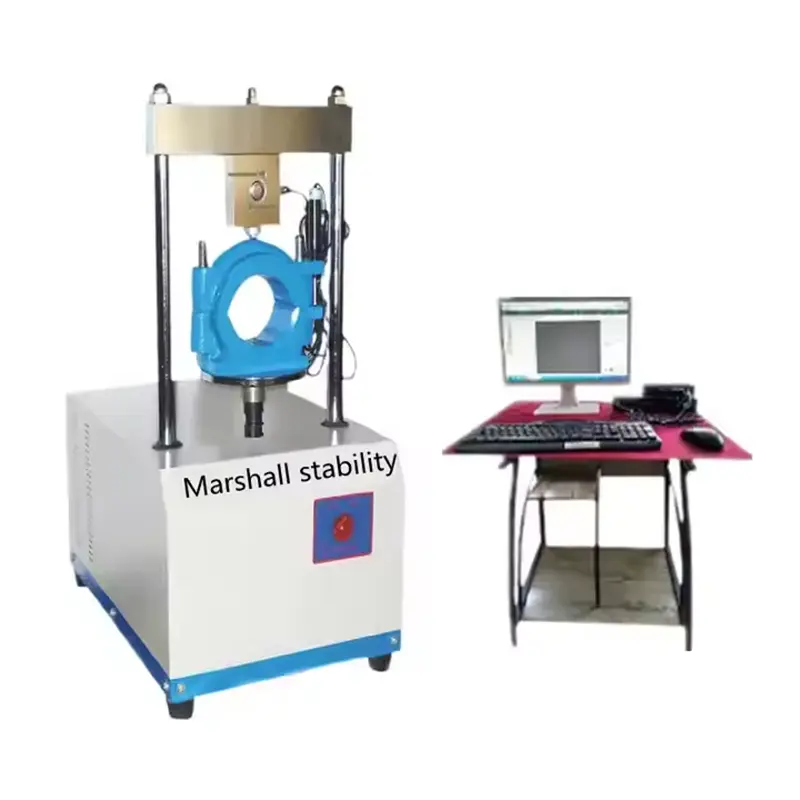

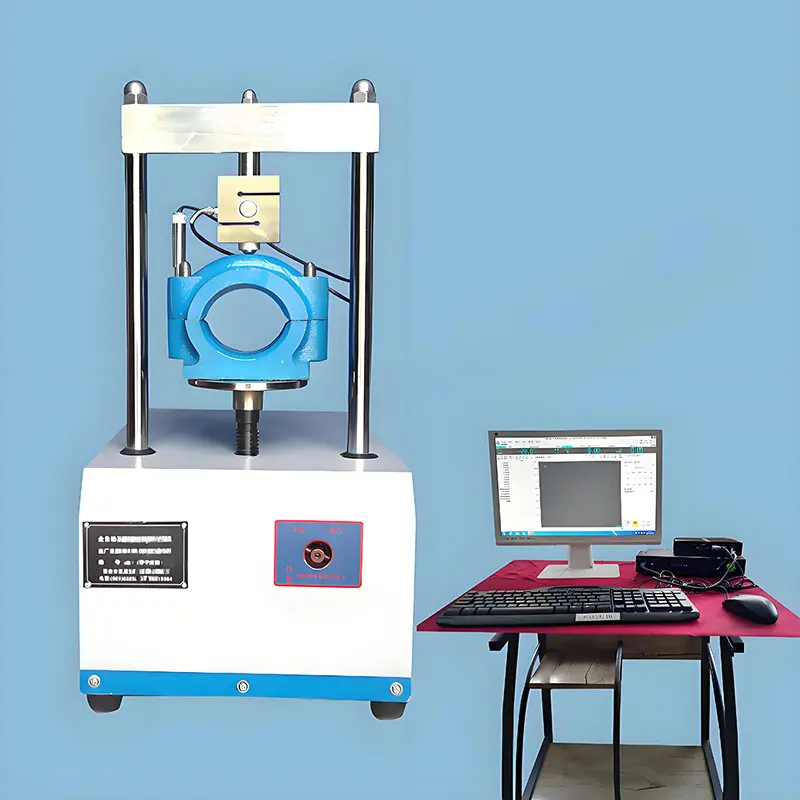

The system is a comprehensive testing solution which includes the host, force measuring device, flow value measuring device, printing device, and related accessories. The host is designed for versatility, capable of completing various vertical load tests with minor adjustments and specific accessory equipment.

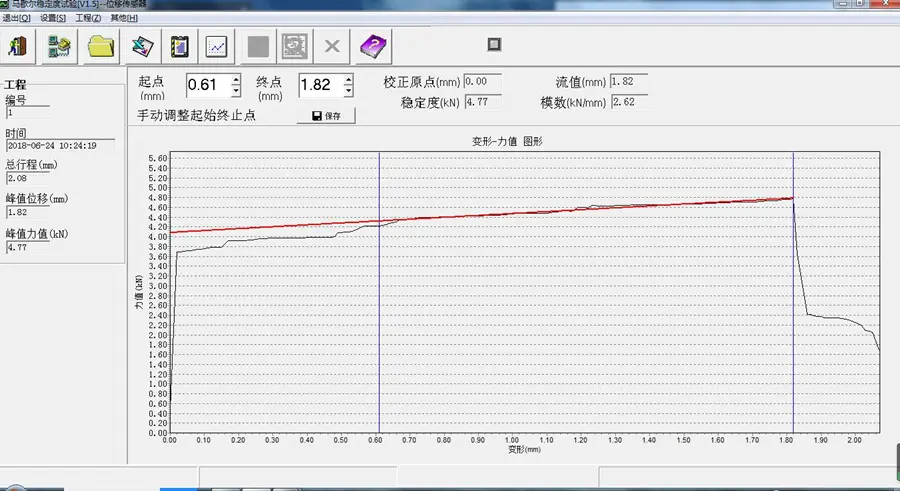

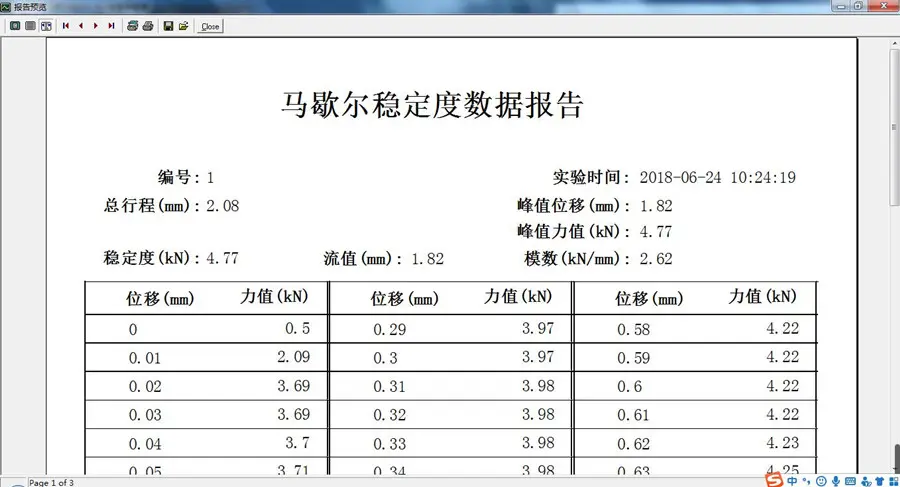

Fully automated capabilities for loading, stopping, and data display. It can collect data, judge peak values, hold them, and print both data and analytical curves.
Advanced design featuring separation of strong and weak currents, as well as digital and analog signals. Industrial-grade electronic components ensure stable performance and strong anti-interference across wide temperature ranges.
Equipped with triple self-protection functions across hardware and software to ensure safe and reliable operation during testing.
Utilizes a modular design where each functional module is relatively independent, facilitating convenient repair, maintenance, and upgrades.
| Sample Size (Standard) | ID 101.6mm ± 0.08mm, Head Spacing 19.05mm ± 0.1mm |
| Sample Size (Large) | ID 152.4mm ± 0.2mm, Head Spacing 19.05mm ± 0.1mm |
| Axial Load Range | 0 ～ 50kN ± F.S 0.5% |
| Displacement Accuracy | Range 0-15mm; Accuracy 0.01mm |
| Strain Speed | 0.001 ～ 50 mm/min |
| Stress Rate | 1N ～ 5000N/S (adjustable sampling) |
| Axial Stroke | 0 ～ 60mm (adjustable rising distance) |
| Power Supply | 220V ± 22V, 50Hz |

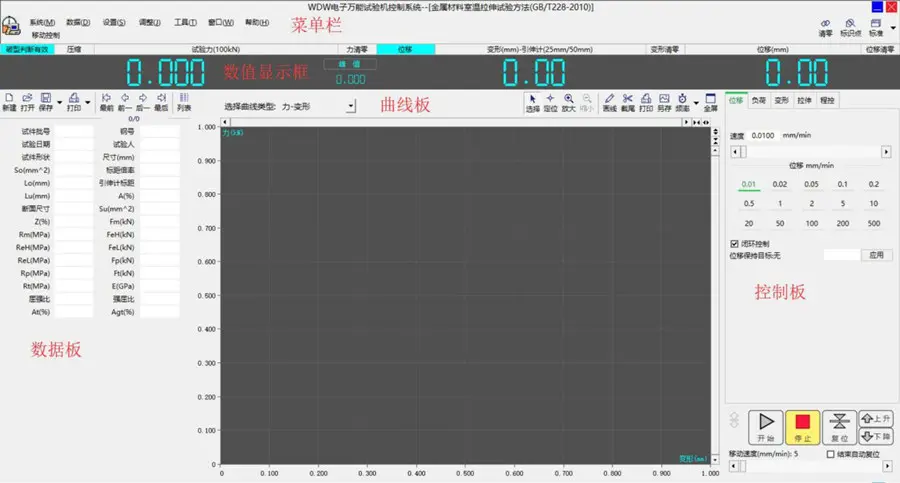

| Software | Real-time control, data acquisition, and storage |
