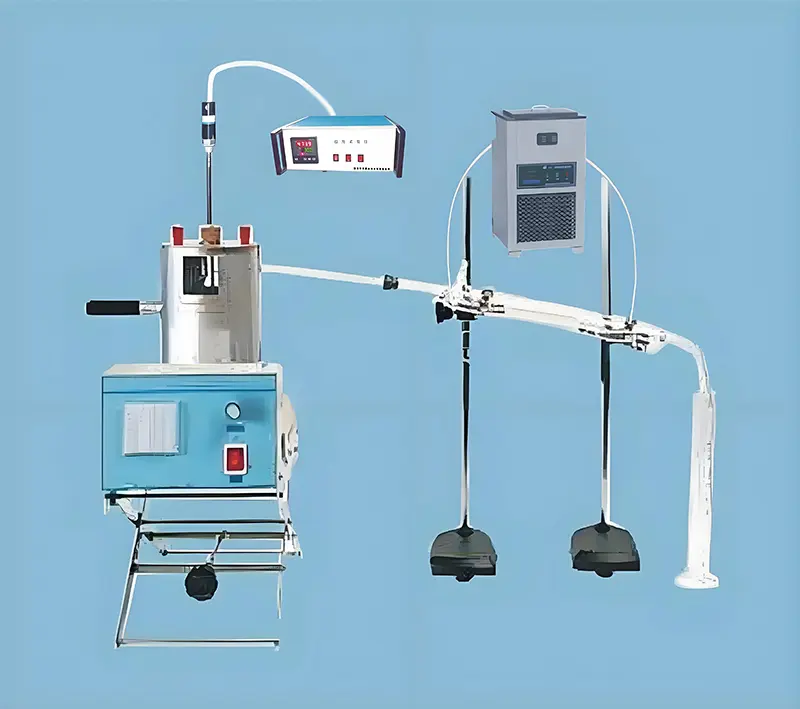

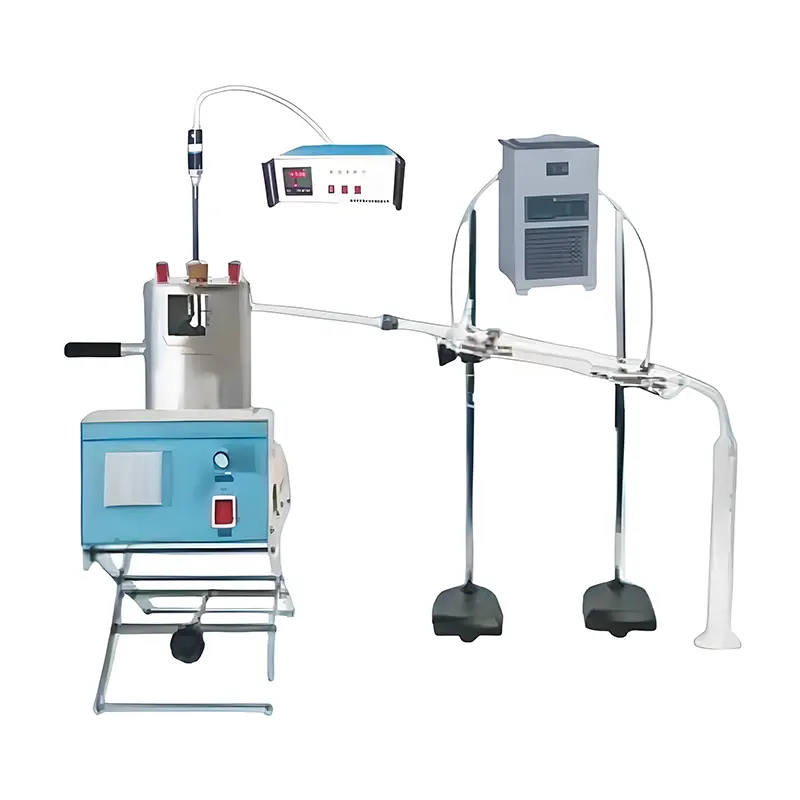

Designed and manufactured in accordance with the requirements of T0632 "Liquid Petroleum Asphalt Distillation Test" in the national industry standard JTJ052 "Highway Engineering Asphalt and Asphalt Mixture Test Procedure", it is suitable for determining the fraction content of liquid petroleum asphalt.

Send Inquiry

Product Description

⚙

Technical Parameters

1. Working Power Supply AC 220V±10%, 50Hz.
2. Thermometer 0~360℃, graduation 1℃, compliant with GB514 distillation thermometer standards for petroleum product testing.
3. Distillation Flask Made of hard glass, heat-resistant above 500℃. Ball diameter: Φ69mm±1mm; Neck thickness: Φ16mm±1mm.
4. Condenser and Bracket Composed of a Φ12.5±0.5 glass tube and supported by two robust brackets.
5. Heating Thermostat 1000W/220V furnace with a thyristor thermostat circuit box for adjustable heating rates.
6. Measuring Cylinder Available in 100 ml and 10 ml variants with 0.5 ml graduations.
7. Environment & Consumption Working Temperature: -10℃~+35℃; Total power consumption: ≤1100W.
🏗

Structural Features

Split Structure Novel and reasonable design, easy to operate, and fully compliant with GB/T255 standards.
Lifting Mechanism Integral mechanism allowing the heating furnace to be adjusted up and down smoothly.
Water Bath High-quality stainless steel structure, ensuring corrosion resistance and long-term durability.
Voltage Regulation Advanced electronic technology for continuous and stepless regulation of heating power.
📋

Product Specifications

Power supply AC 220 V±10%, 50 Hz
Distillation flask shield Iron sheet with black plating, wooden handle, rectangle observation window with transparent mica.
Distillation flask Hard glass (>500 ℃). Ball section: 102±2.0 mm; Neck: 25±1.2 mm; Branch tube angle: 75±3°.
Thermometer 0~360 ℃, scale division 1 ℃
Condensation tube Φ12.5±0.5 glass tube with two holders.
Heating adjustment Silicon control rectifier circuit; Power: 1000 W/220V; Adjustable speed.
Graduated flask 100 ml, scale division 0.5 ml.
Connection tube Thick glass (1mm), ox horn style, 105° bending angle.
Electric furnace gasket Carbonized silicon, outer diameter 105 mm (Inner diameters 50mm and 30mm).
Maximum power 1100 W
❓

Frequently Asked Questions

What standards does this distillation tester comply with?
The instrument is designed to meet the requirements of GB/T255 and GB514 national standards for petroleum product testing.
What is the maximum temperature the distillation flask can withstand?
The flask is made of hard glass and is heat-resistant up to temperatures exceeding 500℃.
How is the heating rate controlled?
The heating rate is controlled via electronic voltage regulation technology, allowing for continuous and stepless adjustment.
Is the water bath resistant to rust?
Yes, the device features a stainless steel water bath structure which is specifically chosen for its corrosion-resistant and durable properties.
What are the power requirements for this equipment?
The instrument operates on AC 220V±10% at 50Hz, with a maximum power consumption of 1100W.
Does the unit feature adjustable height for the furnace?
Yes, it includes an integral lifting mechanism that allows for smooth and easy vertical adjustment of the heating furnace.
