High precision control: Load resolution ≤ 0.1% FS, deformation measurement accuracy ± 0.1% FS.
Intelligent algorithm: Automatically determine deformation stability standards (e.g., deformation ≤ 0.01 mm per hour).
Pre-set standard test templates (GB/T 50123, ASTM D2435). Supports custom loading paths (ramp, loop). Real-time curve display and report exporting (Excel/PDF).
Security Protection: Overload protection, displacement limit alarm, and power-off data storage.
| Evaporating dish | 4 1/2-inch (114.3 mm) diameter porcelain evaporating dish |
| Oil mixing knife | Soil mixing knife or blade 3 inches (76.2 mm) long and 3/4 inches (19 cm) wide |
| Liquid Limit Meter | A mechanical device consisting of a copper disk and stand |
| Groover | A groover with a measuring gauge |
| Capacity | Suitable container (covered dish) to prevent moisture loss |
| Balance | A balance with a sensitivity of 0.01 grams |
| Exterior dimensions | 290 x 240 x 150mm |
| Weight | 3.8kg |

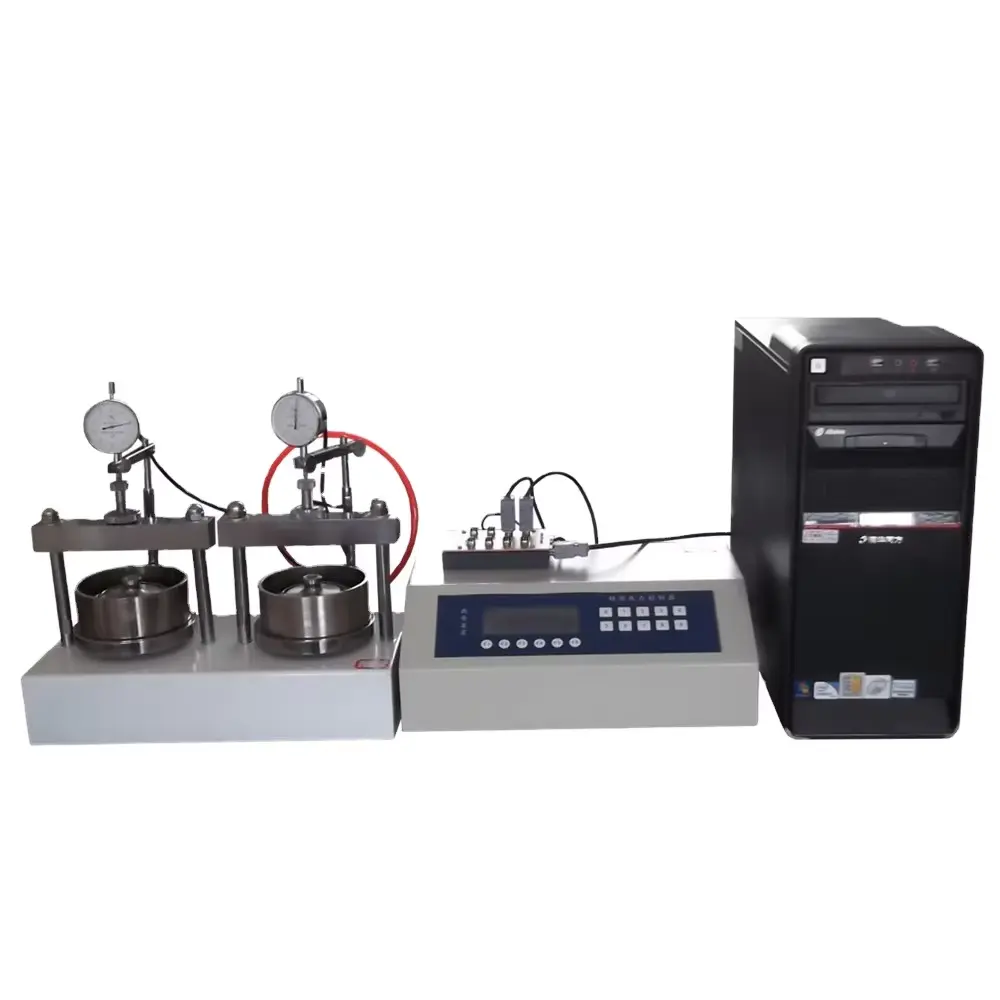

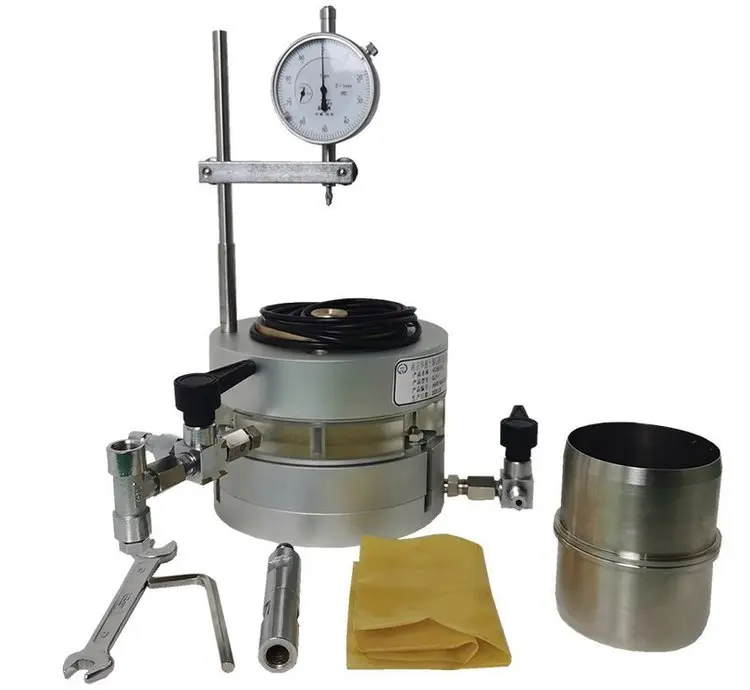

The soil Consolidometer performs normal slow and rapid consolidation tests to determine pre-consolidation pressure and coefficients. It includes specialized functions for loess, such as determining collapsibility coefficients and starting pressure. Rebound modulus and pressure periods can be programmed with voice prompts for operations like water injection.
Deformation Sensor Options:
1. Hydraulic sensor: 0-12.7mm (accuracy 0.005mm)
2. National standard sensor: 0-12.7mm (accuracy 0.01mm)

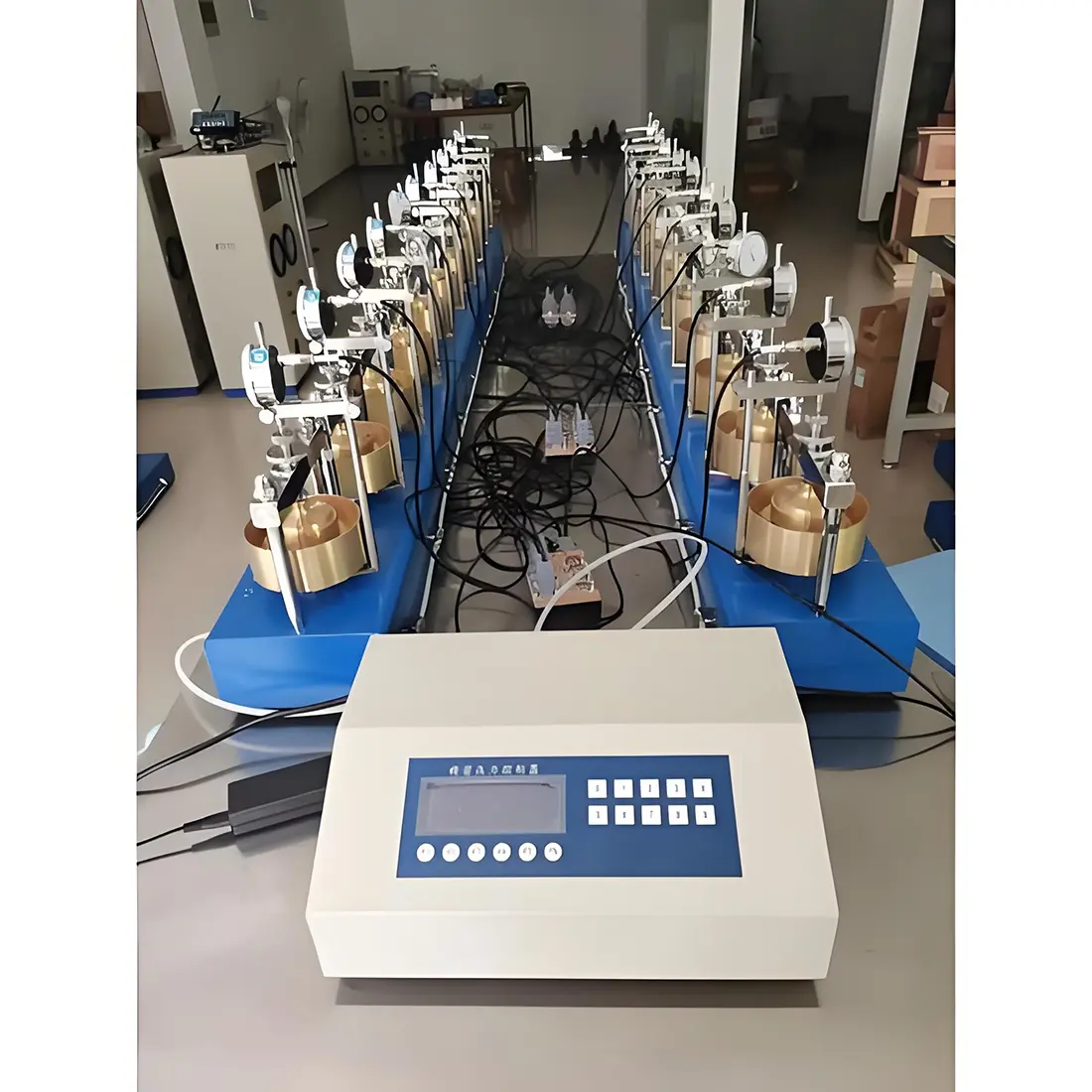

System Capability: The Oedometer system features stable air pressure control, low noise, and easy software installation. One computer can collect data from up to 32 soil samples simultaneously.
