Based on the principle of retroreflection, the Reflective Clothing Measuring Instrument Tester emits light of a specific angle and intensity, irradiates it on the sign reflective clothing, and then measures the intensity and angle of the reflected light through the detector, and then calculates the retroreflection coefficient of the reflective clothing to evaluate its reflective performance. Sign reflective measuring instrument is a new type of portable detection equipment, Can be used to detect all kinds of reflective clothing, reflective material products of the reverse reflection value, and meet the local requirements of the standard.

Send Inquiry

Product Description

★

Key Features

High-precision Measurement Using high-precision, sensitive and durable filters combined with spot metering geometry to measure all types of retroreflective films with laboratory accuracy.
Automatic Compensation Equipped with automatic stray light compensation, ensuring measurement accuracy remains unaffected by daytime light or other light source environments.
Data Storage & Transmission Internal 8GB memory stores a vast number of records. Data can be easily downloaded via USB port to generate Excel reports.
Multiple Measurement Modes Supports fast measurement, average calculations, and preset parameters to display system information like date, time, and test location.
⚙

Technical Parameters

Parameter Item Specifications
Measurement ItemsRetroreflective coefficient cd.lx⁻¹.m⁻²
Measurement Range0 — 1999.9
Observation Angle0.33° / 0.2°
Angle of Incidence5°
Light Source Color Temp2856 ± 50K (Standard illuminant A)
Testing Spot Diameter32mm
Repeatability Error≤ 2%
Reproducibility Error≤ 3%
Battery Working Time> 8 hours
Data Storage Space8GB
Built-in Battery3500mAh
ChargerDC 8.4V
Ambient Temperature-5℃ ~ +50℃
Ambient Humidity< 98% (no frost)
Dimensions220mm × 250mm × 80mm (L×H×W)
Weight1.7kg
☰

Application Scenarios

Traffic Engineering Used for measuring reflective properties of road signs, reflective clothing, markings, and raised studs to evaluate safety facility quality.
Industrial Testing Ideal for detecting reflective signs on industrial equipment and pipelines to ensure site operation safety and convenience.
Quality Control Manufacturers of reflective film and cloth use this for quality control to ensure products meet international standards.

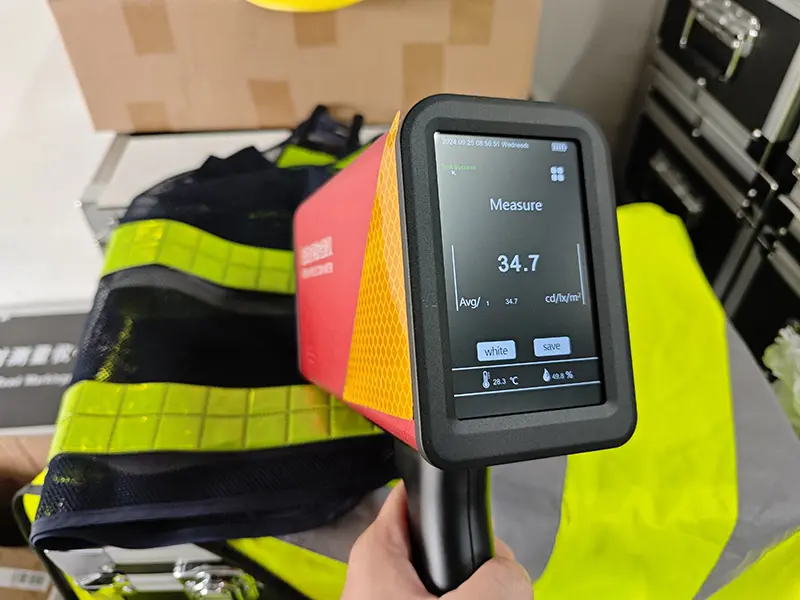

Traffic reflective measurement application
✔

Functional Characteristics

  • Advanced optical measurement system
  • Anti-scratch full metal jacket
  • Magnetic suction calibration method
  • 4.3-inch high brightness LCD touch screen
  • Preset date, time, and test site information
  • Open English menu operation mode
  • Real-time temperature and humidity display
  • Automatic zero check and calibration
  • Multi-language keyboard input support
  • Comprehensive storage record query
  • Rapid measurement mode support
  • Average calculation for multiple tests
  • Storage for > 99,999 test data records
  • Excel format data export via U disk
  • High sensitivity photoelectric assembly
  • Smart standby and auto-sleep management
  • High precision simulation data acquisition
  • Low power consumption reliable OS

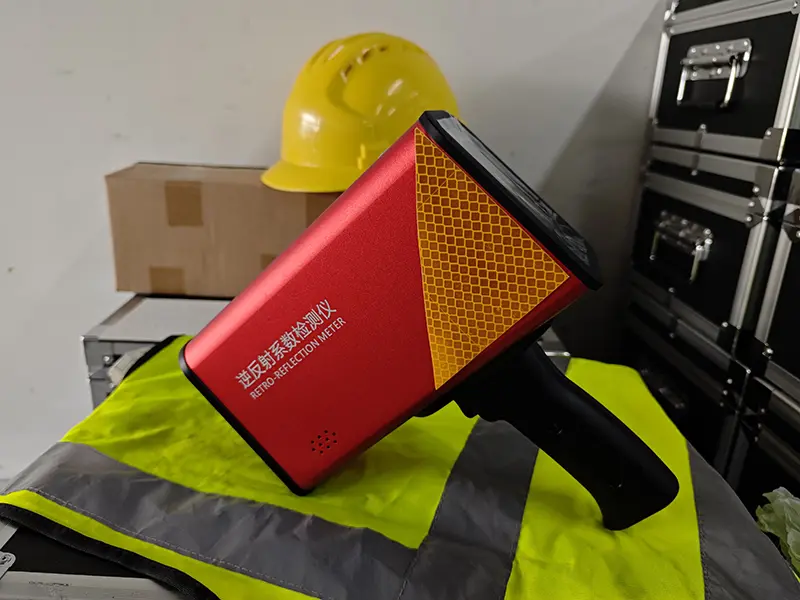

Functional Characteristics Detail
?

Frequently Asked Questions

What is the measurement range of the retroreflectometer?
The instrument has a measurement range of 0 to 1999.9 cd.lx⁻¹.m⁻², making it suitable for all types of retroreflective materials.
Can the instrument be used in bright daylight?
Yes, it features an automatic stray light compensation function, which ensures accurate results even in daytime or under other external light sources.
How much data can the device store and what format is used?
The device includes 8GB of storage, capable of saving over 99,999 records. Data can be exported in Excel format via a USB port.
How long does the battery last on a full charge?
The built-in 3500mAh battery provides a continuous working time of more than 8 hours.
Does the device support different measurement angles?
Yes, it supports observation angles of 0.33° and 0.2°, with a standard entrance angle of 5°.
Is the operation menu available in English?
Absolutely. The system features an open English menu operation mode designed specifically for international customers.
