OEM Automatic Trailer Mounted Falling Weight Deflectometer FWD Pavement Deflection Testing Equipment Pricelist, Quotes
1 / 1

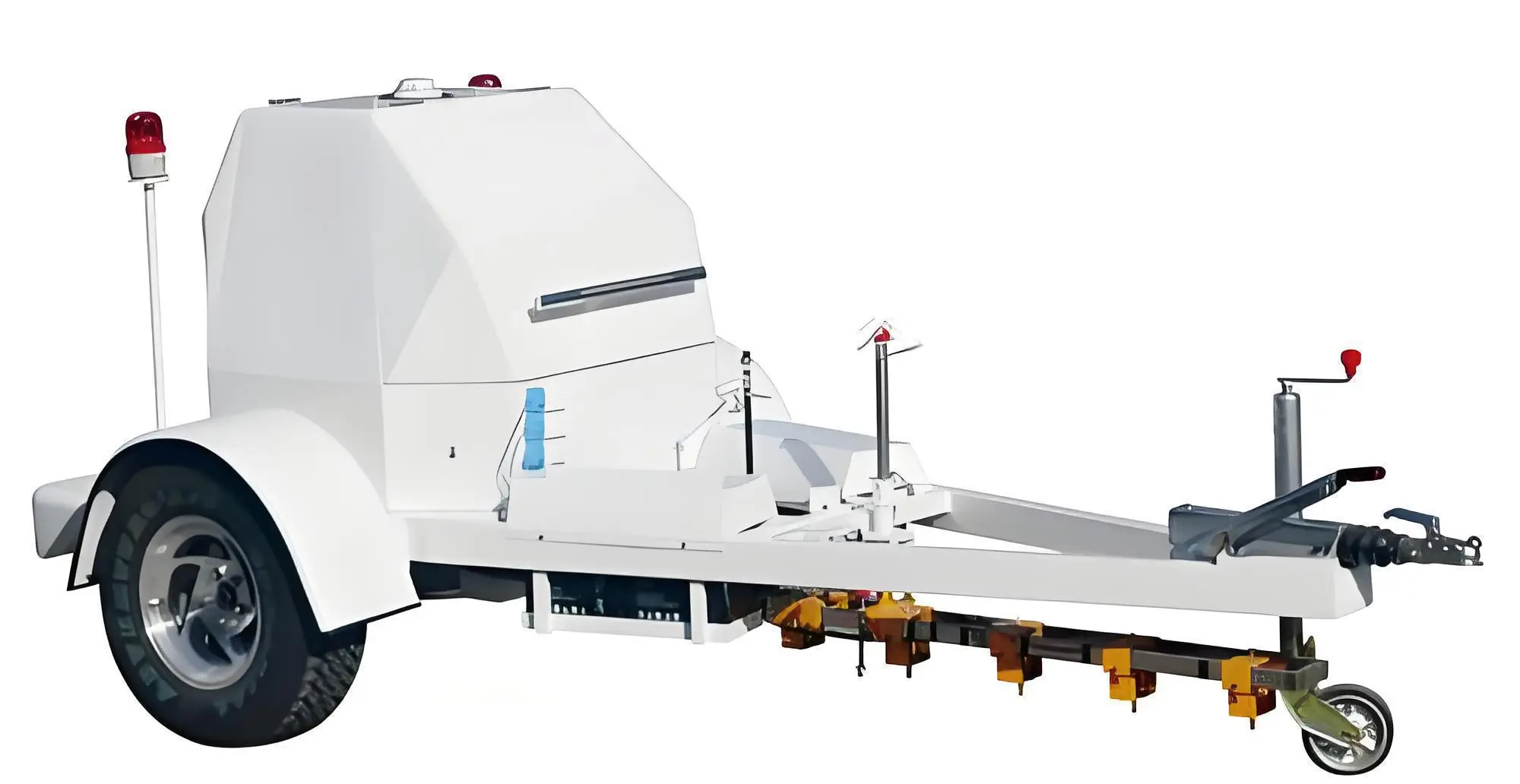

OEM Automatic Trailer Mounted Falling Weight Deflectometer FWD Pavement Deflection Testing Equipment Pricelist, Quotes

OEM Automatic Trailer Mounted Falling Weight Deflectometer FWD Pavement Deflection Testing Equipment Pricelist, Quotes

Falling Weight Deflectometer is an automatic trailer bending measurement system for pavement structure strength detection. It is a key topic of the Ministry of Communications and was undertaken by our company and Southeast University in 1986. JGFWD-200 has won the ministerial achievement award and was included in the Ministry’s key promotion and application project of 1996 scientific and technological achievements.

Send Inquiry

Product Description

Core Features
💻
Equipped with a laptop featuring a "one-button" function for automatic measurement via external key, computer function key, or mouse, allowing single-person operation.
🌡️
Integrated high-precision temperature measurement and automatic detection of bending and load values.
🔋
Continuous field operation with dual power modes: vehicle generator charging or 220V chamber power connection.
🔒
Advanced safety features including mechanical locking and system breakdown protection to lift the bearing plate for transport.
📍
Integrated DMI position/distance measurement and GPS coordinate positioning for long-term data analysis.
🚨
Enhanced driving safety with dual alarm lights installed on the rear of the trailer.

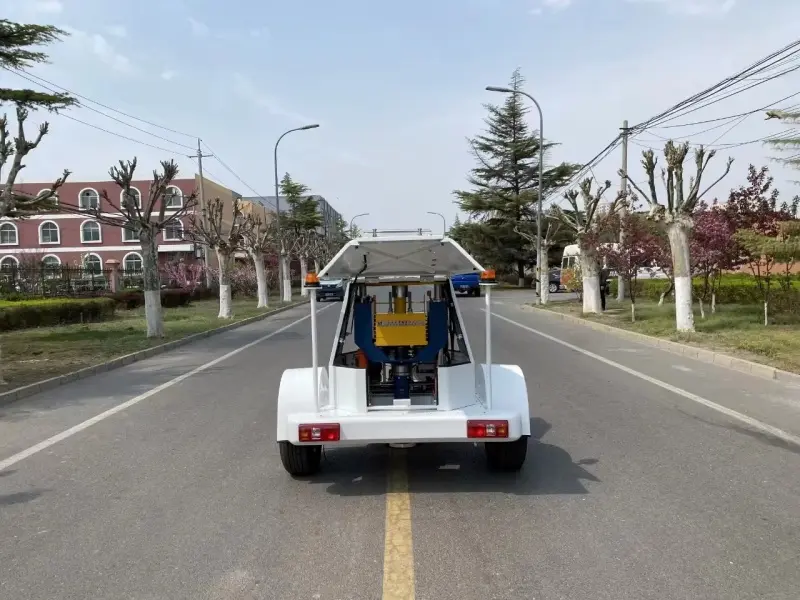

FWD Detailed View 1

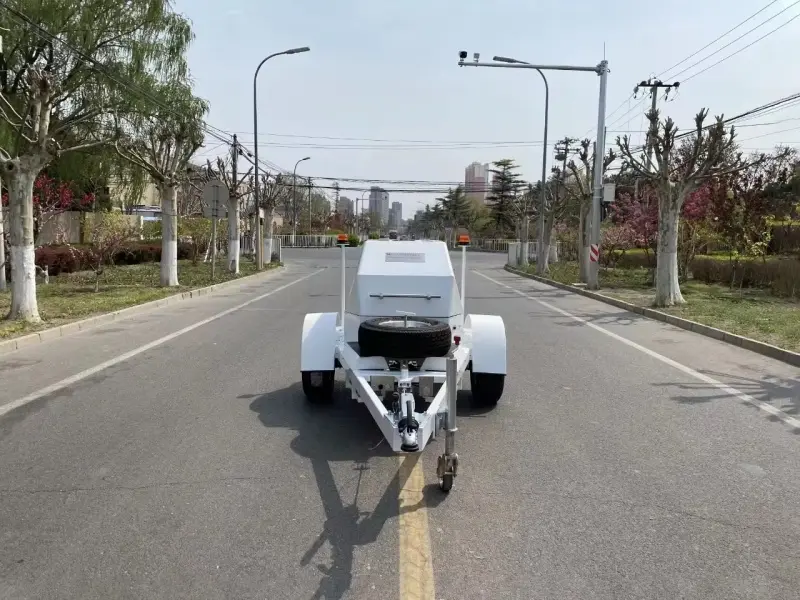

FWD Detailed View 2

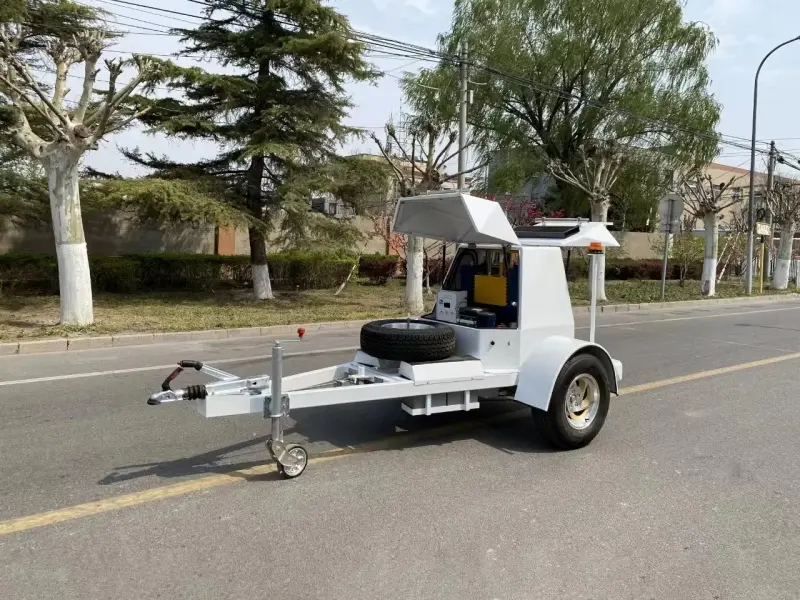

FWD Detailed View 3
Technical Specifications
Impact Load Range:
0-130KN (Factory default: 50KN)
Measurement Accuracy:
Load ≤ 1%; Bending ≤ 2%
Displacement Range:
± 3500 μm (Resolution: 0.1 μm)
Test Speed:
< 20 seconds per point (3 measurements)
Bearing Plate:
300mm diameter, independent 4-point disc ball head
Walking Speed:
Up to 120km/h (depending on road)
Data Transmission:
Wireless or network cable transmission
Chassis Origin:
Imported from Germany (3.8m body length)
Software & Data Processing
• Normalization of measurement data and standard shaft load.
• Automatic conversion to Beckmann beam values with optimized coefficients.
• Automatic calculation of mean value, variance, and deflection representative values.
• Seamless conversion of kilometer data into pile number data formats.
Frequently Asked Questions
Can the FWD system be operated by a single person?
Yes, the system is designed with a "one-button" function through external switches or computer keys, allowing one technician to complete the measurement work.
What are the power options for field work?
The system supports two modes: continuous charging via the vehicle's generator while in use, or using standard 220V power to charge the battery.
How fast can tests be conducted?
The test speed is highly efficient, taking less than 20 seconds per measuring point for a standard three-measurement sequence.
Does the system provide location tracking for data?
Yes, each measuring point includes longitude and latitude GPS coordinate information, which is essential for repeated analysis and comparison of the same points over multiple years.
What types of temperatures does the system measure?
The equipment is fitted with two temperature sensors capable of measuring both the ambient air temperature and the road surface temperature simultaneously.
Is the trailer suitable for narrow roads or ramps?
The car body is compact (3.8 meters) for easy turning, and the bearing plate features a spherical joint structure specifically designed to meet ramp inspection requirements.
