High-Quality IRI Road Surface Roughness Testing Equipment Continuous Eight-wheel Evenness Meter Supplier, Quotes

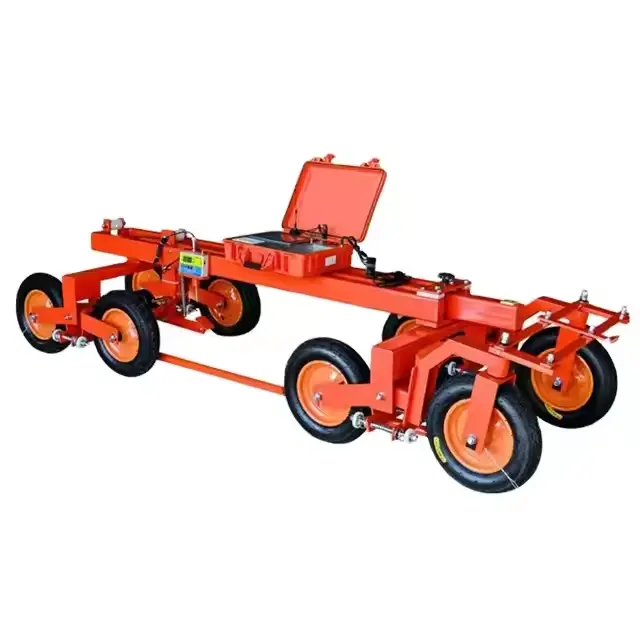

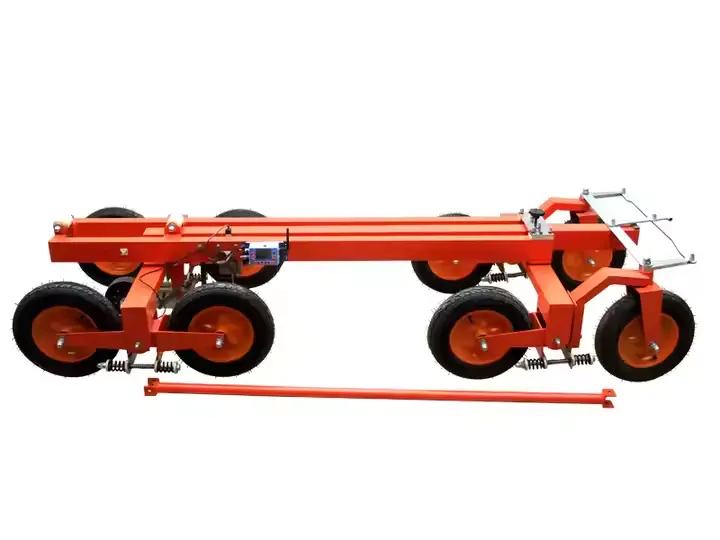

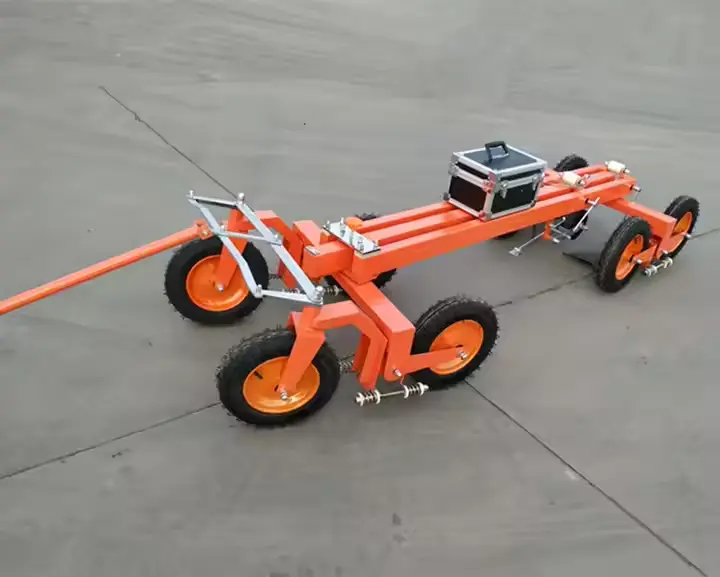

The eight-wheel evenness meter is used to measure the standard deviation σ of the unevenness of the road surface. It represents the mm meter of the road surface flatness meter and calculates the interval length of 100m for easy printing of results (if it is less than 100m, press the stop button to print the results).
It is used to measure the smoothness of road surfaces, evaluate the construction and usage quality of road surfaces, but not suitable for measuring on roads with many potholes and severe damage.
Physical Dimensions4061 x 600 x 600 mm (Stretchable)
Frequently Asked Questions
What is the measurement resolution of the flatness meter?
The instrument features a high-precision sensor with a resolution of 0.01mm and a sampling interval of 0.1m, ensuring detailed road surface analysis.
How long does the battery last during field operations?
The device is equipped with a built-in 12V battery that supports up to 12 hours of continuous operation on a single charge.
What is the maximum speed allowed for accurate data collection?
The high-speed capability of this flatness meter allows for accurate sampling at speeds up to 25Km/h.
Is the device portable or adjustable in size?
Yes, the instrument is designed to be stretchable. It has a full length of 4061mm but can be shortened to 2450mm for easier transport and storage.
Can the controller record specific road information?

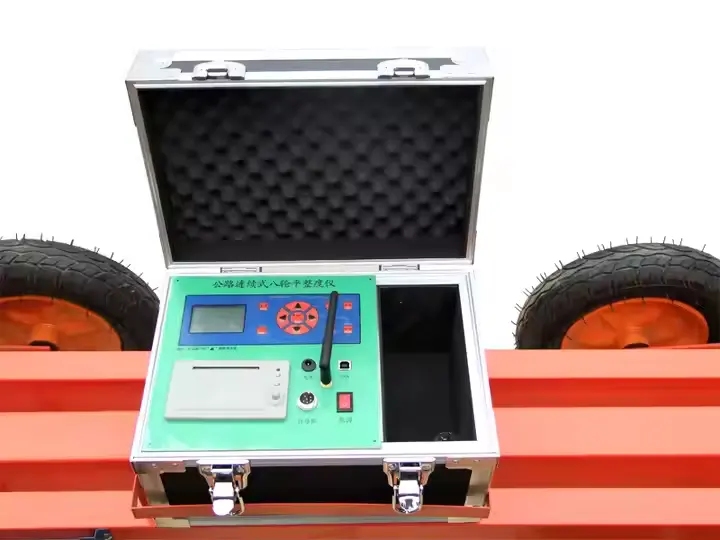

The 6Kg dedicated controller allows users to set and record road numbers, station numbers, and mileage data, specifically flagging values that exceed tolerance ranges.
What environmental conditions can the equipment withstand?
The equipment is designed to operate reliably in a wide temperature range from -10℃ to +40℃, making it suitable for various climate conditions.
