The marking line retroreflection measuring instrument is a portable on-site measurement instrument with an open light path, used to measure the retroreflection brightness coefficient of the marking line. Unit: mcd·m-2·lx-1. The main characteristics of its research are: simulating a motor vehicle driving on the road at night, the headlights shining on the markings (made of retroreflective material) on the road, and the brightness observed by the driver in the cab after reflection. The parameter measured is the nighttime retroreflective luminance coefficient, or RL value. This Road Line Retroreflectometer can measure the marking line and the retroreflection brightness coefficient of the oscillating marking line under three conditions: dry R_L, wet R_(L_wet) and continuous rainfall R_(L_rain).

Send Inquiry

Product Description

Compliance Standards

This Road Marking Retroreflectometer complies with the following international and national standards:

  • ✓ GB/T 26377-2010 "Retroreflection Measuring Instrument"
  • ✓ GB/T16311-2009 "Road Traffic Marking Quality Requirements and Testing Methods"
  • ✓ JJF 1809-2020 "Calibration Specifications for Retroreflection Measuring Instruments"
  • ✓ JTGF80-1-2017 "Highway Engineering Quality Inspection and Assessment Standards"
  • ✓ DB36/T978-2017 "Quality Requirements and Testing Methods for Reflective Markings on Road Traffic on Rainy Nights"
  • ✓ DB51/T2429-2017 "Quality Requirements and Testing Methods for Reflective Markings on Highway Traffic on Rainy Nights"
  • ✓ ASTM E1696-2015, EN 1463

⭐ High values are more accurate and will not be interfered by external light. One-click printing on-site (no need for additional printer).

Main Features
●
Open light path, no interference from external light during measurement.
●
Support measurement under dry, humid and continuous rainfall conditions.
●
Fast measurement (retroreflective brightness coefficient value measured within 1.5 seconds).
●
Supports simple calibration procedures using ceramic calibration blocks.
●
5-inch daylight high-brightness screen, clear visibility under direct sunlight.
●
Supports color measurement (white, yellow, orange, red, green and blue).
●
Numerical setting of standard marking lines to determine pass/fail results.
●
Stores over 200,000 pieces of data (measurement mode, color, operator, road info, etc.).
●
16G SD card storage with Excel export capability via USB.
●
Real-time broadcast of measurement data and built-in on-site printer.
●
Multilingual support including English menu for international customers.
●
Optional GPS positioning, shooting function, and QD detection.

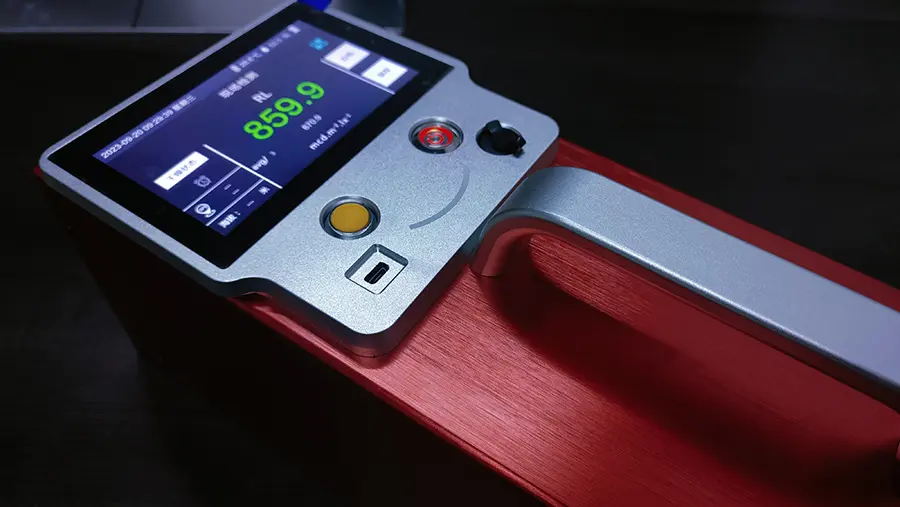

Road Marking Retroreflectometer Main View
Technical Parameters
⚙
Measurement item: Retroreflection coefficient mcd.m-2.lx-1
⚙
Measurement range: 0 --- 4000
⚙
Observation/Incident Angle: Obs: 1.05° | Incident: 88.76°
⚙
Measurement area: 250mm x 75mm
⚙
Repeatability error: ≤3%
⚙
Battery life: >72h continuous working
⚙
Storage capacity: 16GB
⚙
Operating Temp: -15℃ ~ +60℃

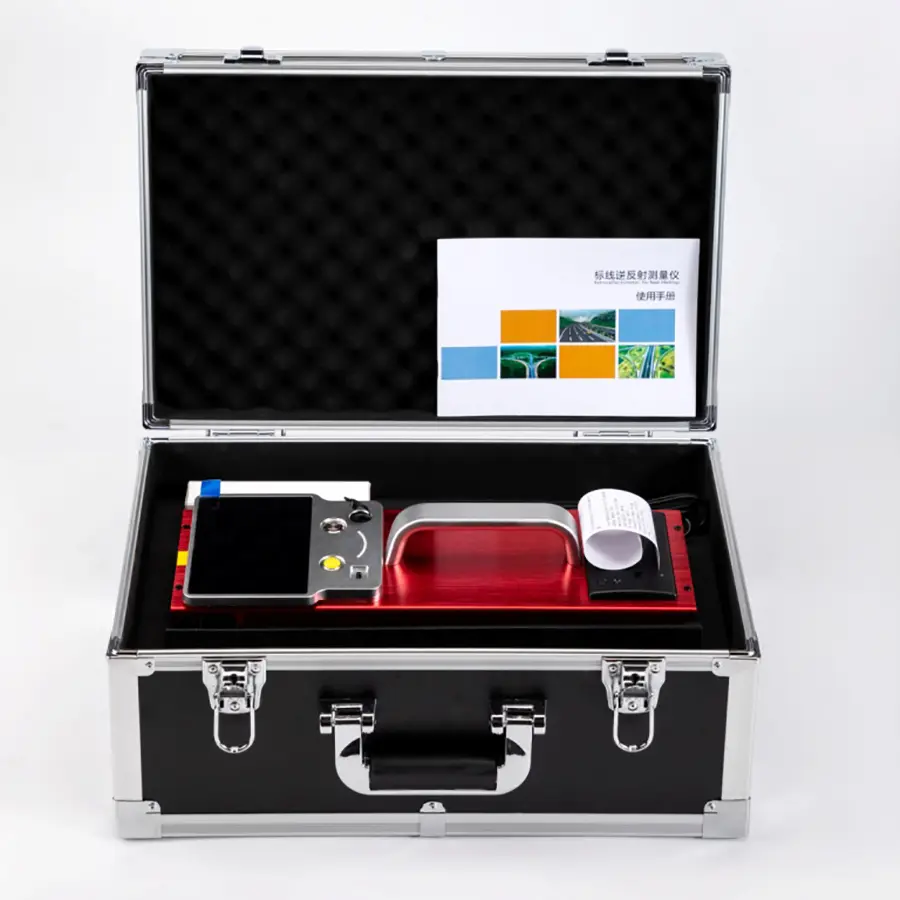

Technical Specifications Display
Packing List
Serial Number Name Quantity
1Marking line retroreflection measuring instrument1 set
2Charger1
3USB data cable1 item
4User's Guide1 serving
5Product certification1 serving
6Warranty card1 serving
7Ceramic calibration plate1 set
8Stylus1
Frequently Asked Questions
Does this instrument support testing in wet conditions?
Yes, it is specifically designed to support measurements under dry, humid, and continuous rainfall conditions, complying with specific rainy-night standards.
How fast can I get a measurement result?
The instrument is highly efficient, providing the retroreflective brightness coefficient value within approximately 1.5 seconds.
How much data can the device store?
It comes with 16GB of storage, capable of storing more than 200,000 pieces of detailed detection information.
Is it possible to print results directly on-site?
Yes, the device features a built-in printer that allows you to print out inspection results immediately on-site without any external equipment.
Can it measure different colors of road markings?
Yes, it supports color measurement for six standard marking colors: white, yellow, orange, red, green, and blue.
What is the battery endurance for field work?
The built-in 13Ah battery provides a continuous working time of more than 72 hours, making it ideal for long-duration field inspections.
