Composition of Instruments

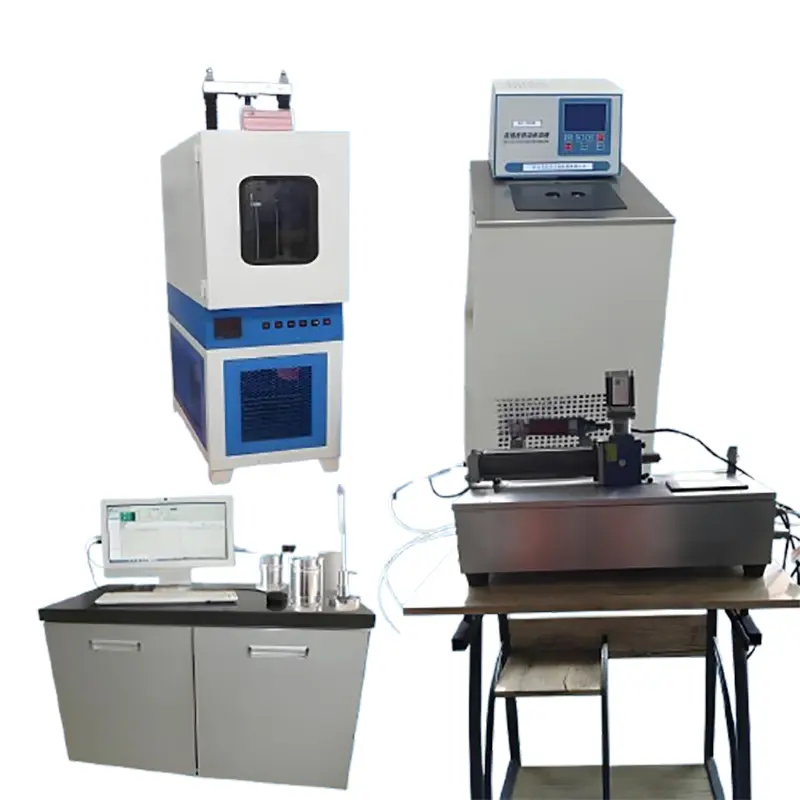

This Soil Triaxial Compression Vibration Testing Machine is an electromagnetic servo vibration three-axis system. Its robust composition integrates advanced mechanical and electronic components to ensure precise geotechnical analysis.
1
Host: Includes a high-precision pressure chamber and a reliable servo electric cylinder for axial loading.
2
Electromagnetic Servo Control: Specialized for axial vibration, applying axial dynamic stress, and managing servo electric cylinders with high fidelity.
3
Pressure Control System: Manages confining pressure and back pressure through an integrated network of pipelines, gas, and water sources.
4

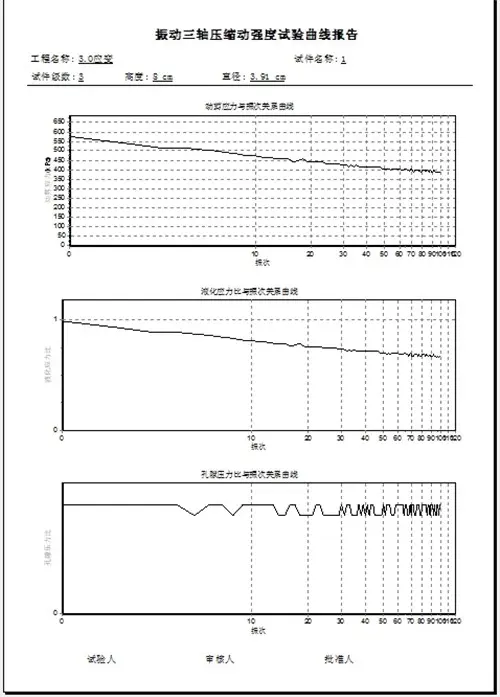

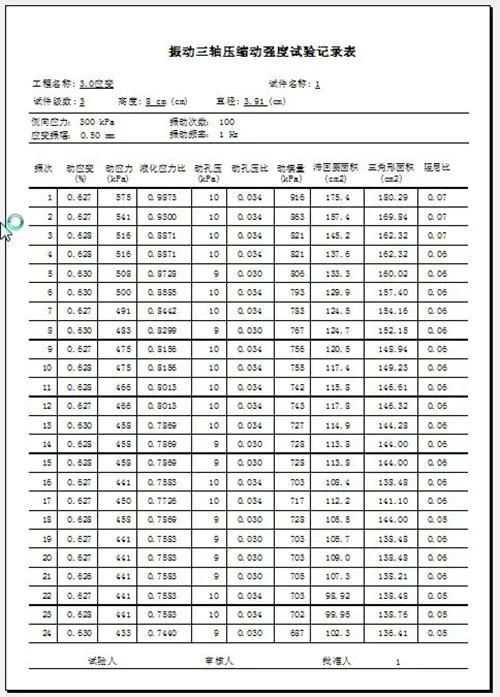

Data Acquisition & Software: A computer-driven system that monitors the entire experiment, records real-time data, and generates automated test reports and curve graphs.
Technical Parameters
(1) Soils Triaxial Compression Test Host
Piston Stroke: 100mm
Output Options: 50KN, 100KN, or 200KN (optional)
Pressure Sensor: 0-10KN (Accuracy: 0.05N)
Deformation Range: 0-100mm (Accuracy: 0.001mm with zero reset)
Loading Speed: 0.001-50mm/min (Arbitrarily set)
Vibration Frequency: 0.1-5.0Hz (Stress-strain control)
Voltage/Power: 220V 50Hz / 5KW
(2) Confining Pressure Loading System
Pressure Range: 0-1000KPa (Gas or water pump source)
Test Medium: Liquid or Gas
Operation: Full computer control and display
Display Accuracy: 1KPa
(3) Reverse Pressure Control System
Loading Range: 0-1MPa
Voltage/Power: 220V / 250W
(4) Variable Body Control System
Displacement Accuracy: 0.1mL
Pore Pressure Transmitter: 0-300KPa (Accuracy: 0.5KPa)
(5) Pressure Chamber
Diameter Options: Φ 39.1mm, 61.8mm, and 101mm (Standard factory config: 39.1mm)
(6) Servo Control System
Based on the intelligent ISD platform with built-in PCI2.1 specification. Features 32-bit floating-point DSP control and DTE embedded real-time operating system. Measurement frequency of 10,000 times/second for high-standard dynamic testing.
(7) Environmental Chamber
Adjustable Temperature: -20 ℃ to 60 ℃
Features: Cyclic temperature (freeze-thaw capability)
Power: 220V, 4KW
Frequently Asked Questions (FAQ)
What loading capacities are available for the triaxial test host?
The machine offers optional high output capacities of 50KN, 100KN, or 200KN to suit different soil testing requirements.
Can the vibration frequency be customized during the test?
Yes, the electromagnetic servo system allows the vibration frequency to be set arbitrarily between 0.1Hz and 5.0Hz.
What sizes of soil samples can be tested?
The pressure chambers are available in diameters of 39.1mm, 61.8mm, and 101mm. The standard configuration includes the 39.1mm chamber.
How does the system handle environmental variables like temperature?
The machine includes an environmental chamber that can adjust temperatures from -20 ℃ to 60 ℃, supporting complex freeze-thaw cycle tests.
Is the data collection process manual or automated?
The process is fully automated. The computer control system collects data in real-time and automatically generates curve reports and test tables.
What is the measurement frequency of the servo control system?
The system operates at a measurement and control frequency of 10,000 times per second, meeting strict dynamic testing specifications.
