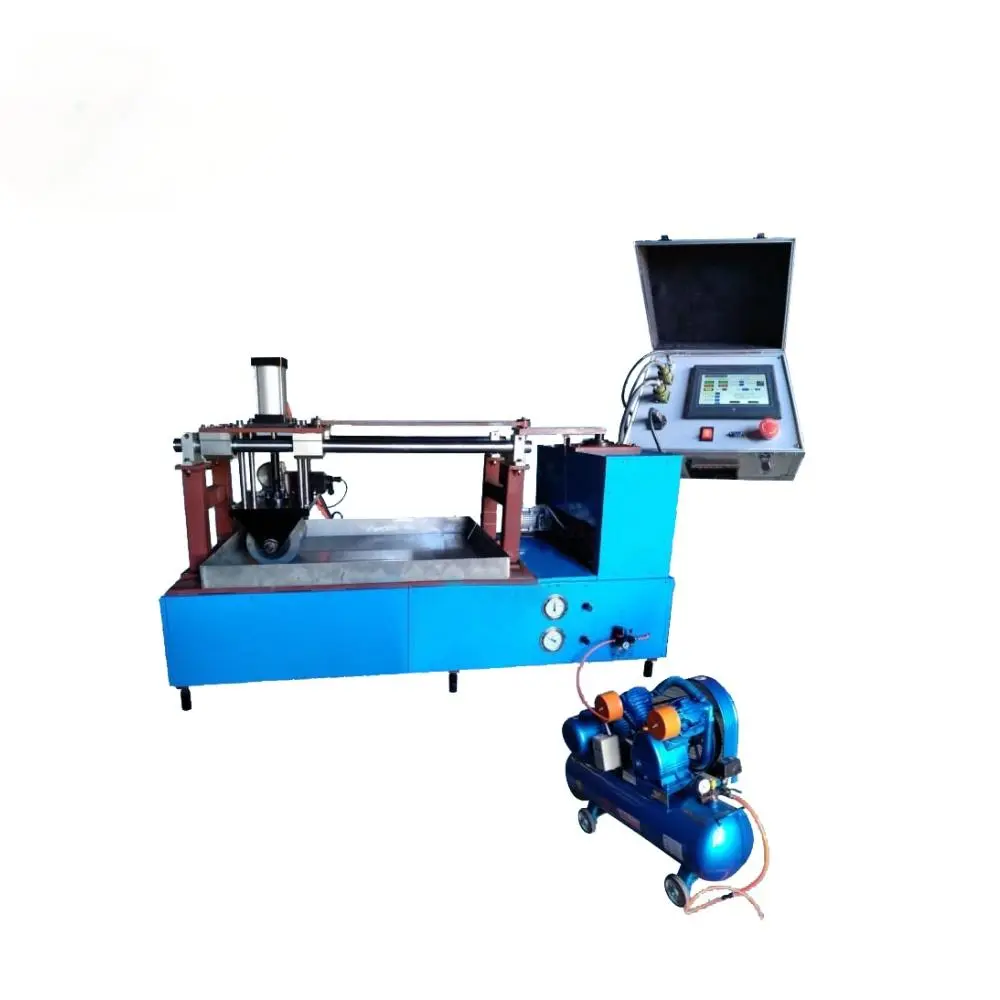

The instrument is a fatigue load dynamic water erosion coupling testing machine, specifically engineered to simulate the combined effects of wheel rolling compaction and dynamic water erosion. It replicates real-world road surface conditions on rainy days where accumulated water interacts with heavy vehicle traffic.
The system is decomposed into six main modules: main frame, dynamic water test chamber, loading system, water pressure supply system, drive system, and control system.
Equipped with high-pressure nozzles and a circulation tank. Water pressure is adjustable from 0-1MPa with an accuracy of 0.05MPa, simulating high-speed tire splash effects.
Features rubber-tired wheels performing reciprocating motion at 1Hz. Loading pressure is adjustable within 10-25KN to simulate heavy vehicle compaction.
During operation, the dynamic water test chamber can accommodate 5 concrete small beam specimens (40cm × 10cm × 10cm) simultaneously. The driving system utilizes a crank and connecting rod mechanism to drive the wheels in a repeated rolling motion, accurately simulating four-point bending fatigue loading and three-point fatigue scenarios.
| 1. Fatigue Load Cycles | 0-1000 times (arbitrarily adjustable) |
| 2. Ultimate Pressure | 300KN (adjustable) |
| 3. Concrete Test Wheel (A) | Double wheel; Width 6.5cm, Diameter 20cm, Wheelbase 10cm; Shore strength: 55-80 |
| 4. Asphalt Test Wheel (B) | Single wheel; Diameter Φ 245mm × Width 245mm; Rubber thickness: 50mm; Hardness: 78HRC ± 2HRC (60 ℃) |
| 5. Steel Test Wheel (C) | Diameter Φ 245mm × Width 150mm |
| 6. Working Pressure | 0.72MPa (± 0.2MPa) |
| 7. Specimen Sizes | Concrete: 400 × 100 × 100mm (4 samples); Asphalt: 300 × 300 × 50mm |
| 8. Water Pressure Range | 0-1MPa; Accuracy 1%; Adjustable settings |
| 9. Temperature Control | Room temperature to 100 ℃; Accuracy 2%; Adjustable settings |
A: It is used to simulate road fatigue and dynamic water erosion caused by vehicle wheels on wet or flooded road surfaces.
A: The dynamic water test chamber can load and test up to 5 concrete beam specimens (40cm x 10cm x 10cm) simultaneously.
A: Yes, the system includes a water storage tank and a return outlet in the test box, allowing the sprayed water to circulate continuously.
A: Yes, it includes specific test wheels (Type B) and supports asphalt mixture samples measuring 300 x 300 x 50mm.
A: The loading pressure is adjustable between 10-25KN, and the equipment operates at a reciprocating frequency of 1Hz.
A: Yes, the machine supports a temperature range from room temperature up to 100 ℃ with a 2% accuracy level.
