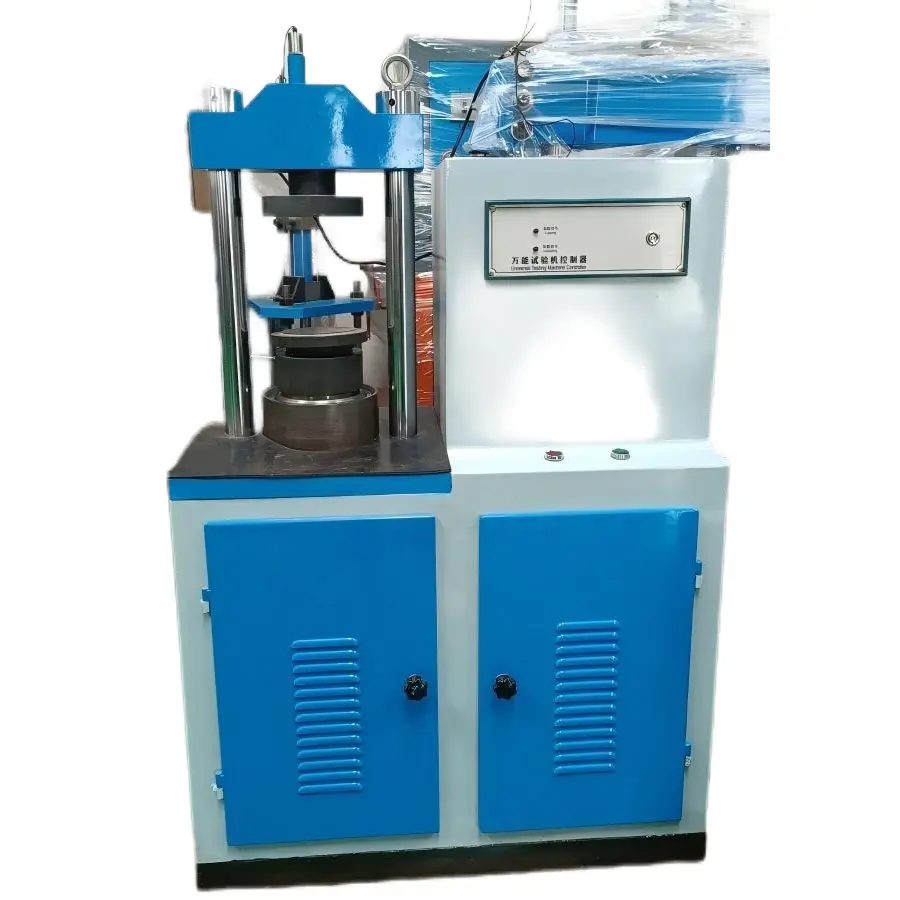

| Type | Name | Parameter Details |
|---|---|---|
| Basic | Maximum test force | 300KN |
| Accuracy class | Level 1 | |
| Load | Test force measurement range | 0.4% ～ FS (Full Range) |
| Test force indication error | Within ± 0.5% of the displayed value | |
| Test force resolution | ± 1/300000 of max force, constant resolution throughout | |
| Control | Force control rate adjustment | 0.005 ～ 5% FS/s |
| Force control accuracy | ± 0.5% to ± 2% depending on speed range | |
| Rebound deformation | Range 0-50mm, accuracy 0.001mm | |
| Control range | 0.5% ～ FS | |
| Control accuracy | Within ± 0.5% to ± 1% of set value | |
| Host | Deformation (Poisson's ratio) | 0 ～ 8mm, accuracy 0.001 |
| Piston stroke | 150mm | |
| Pressure plate distance | 450mm | |
| Power | 380V / 50Hz, ± 10% | |
| Host weight | 300Kg |
