OEM Traffic Line Thickness Gauge Road Marking Thickness Measurement System for Road Marking Traffic Lines Manufacturer, Pricelist

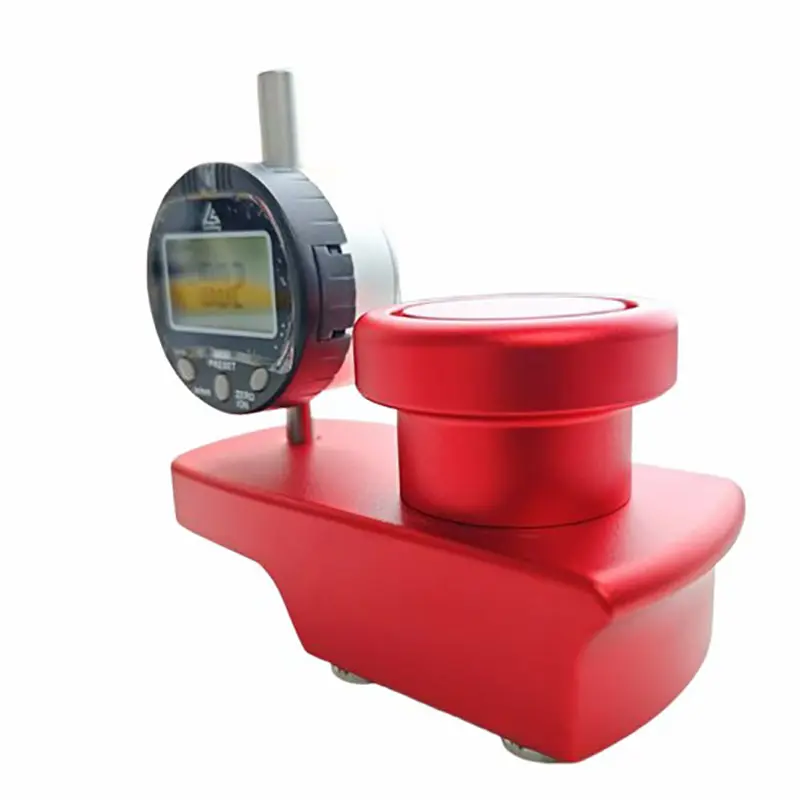

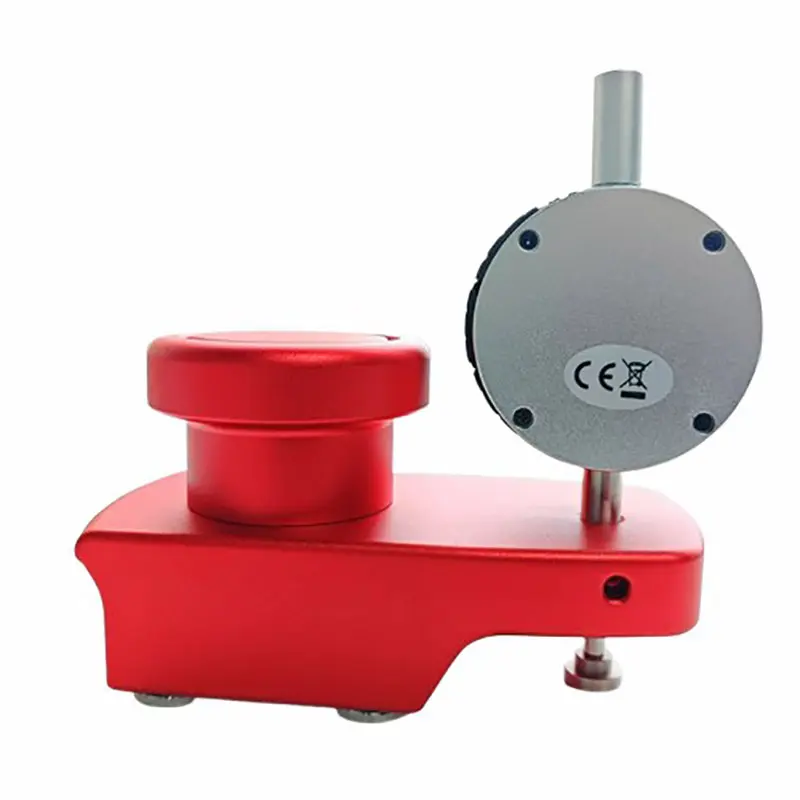

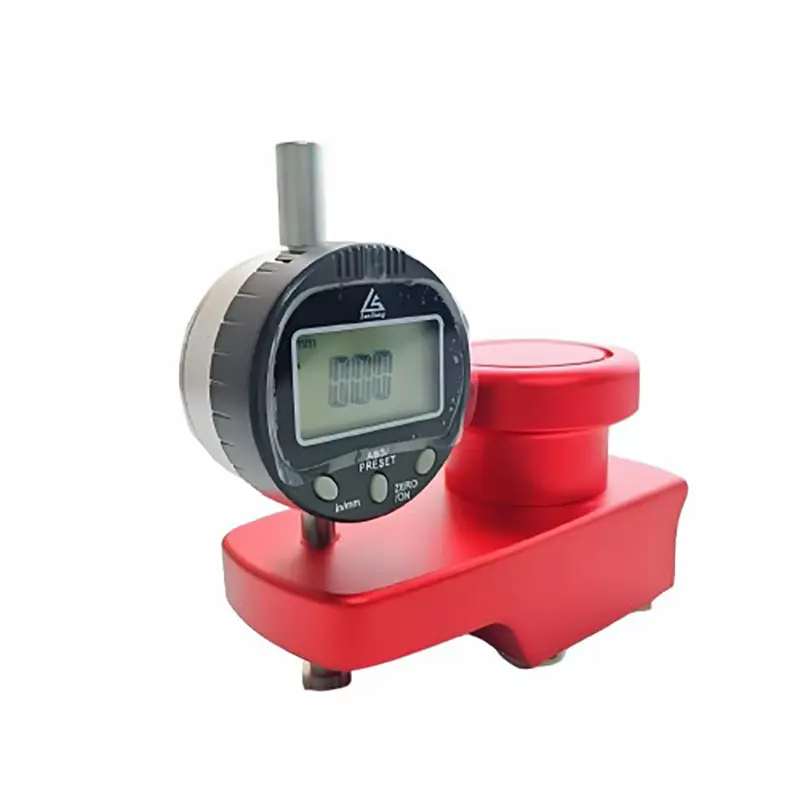

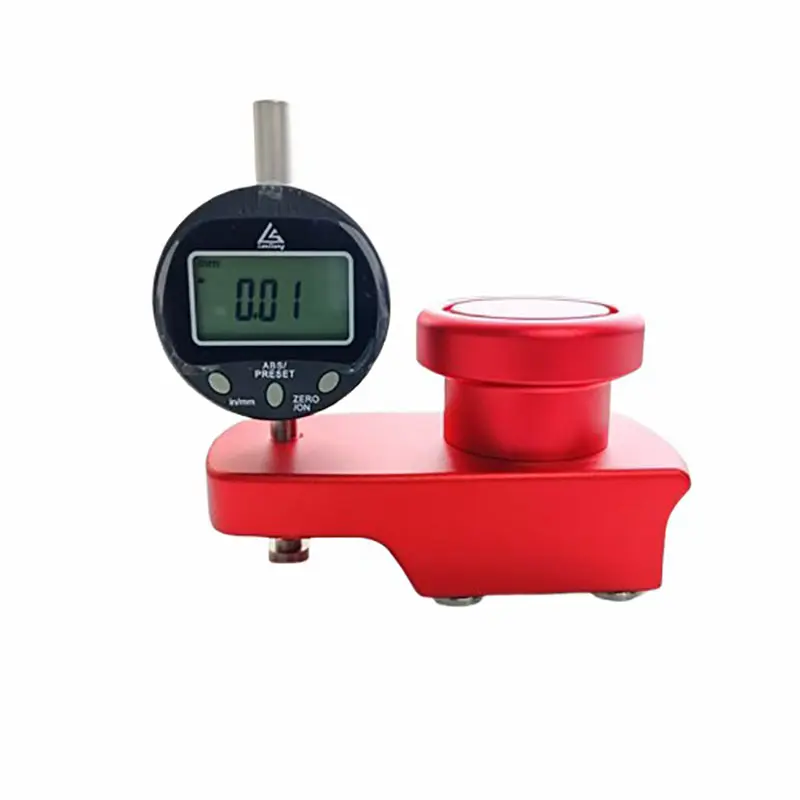

AT-CT-003 Road marking thickness measuring instrument is mainly used to measure the thickness of road markings. Road Marking Thickness Measuring Instrument is designed and produced for road marking manufacturers, road marking production process construction units, and road quality supervision units to measure the thickness of road markings. The instrument has the characteristics of reasonable structure design, simple operation, wide applicability, and high measurement accuracy.

Send Inquiry

Product Description

🏗️

Road Construction

Check whether the thickness of hot melt markings, cold paint markings, etc. meets the design requirements.

🔍

Quality Supervision

Used in the acceptance link to ensure that the marking thickness meets national standards.

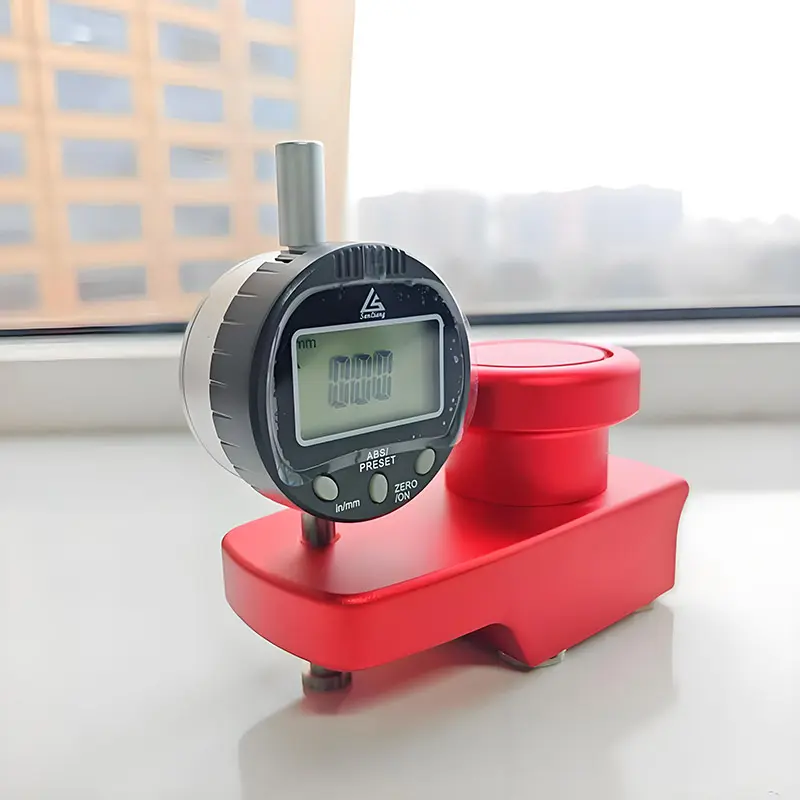

Operation Method

Preparation: Ensure that the measuring base and the moving flat block are at the same level, install and fix the dial gauge head, and tighten the locking screw. After turning on the machine, clear the display screen to ensure that the initial value is zero.
Measurement Process: Place the base steadily on the mark to be measured, adjust the joint of the moving block to be parallel to the edge of the mark, and let it fall freely to contact the surface. Press the hold button to lock the data, read and record the display value.
Function Setting: Support unit switching (metric/imperial, depending on the model function). Some models have data export function, which needs to be operated according to the manual.

Technical Parameters

Measuring Range	-12.7mm ~ 12.7mm
Minimum Resolution	0.01mm
Indicating Accuracy	0.02 mm
Usable Temperature Range	-10 ℃ - 50 ℃
Gauge Type	High-precision dial indicator
Applications	Can measure height / thickness / depth

Precautions

1. Calibration & Accuracy

Before measuring, the instrument zero value needs to be adjusted. Keep the surface of the mark clean to prevent dust from affecting accuracy.

2. Operation Specification

The probe must contact the surface vertically. Sliding is prohibited to prevent wear. Wait a few seconds between measurements.

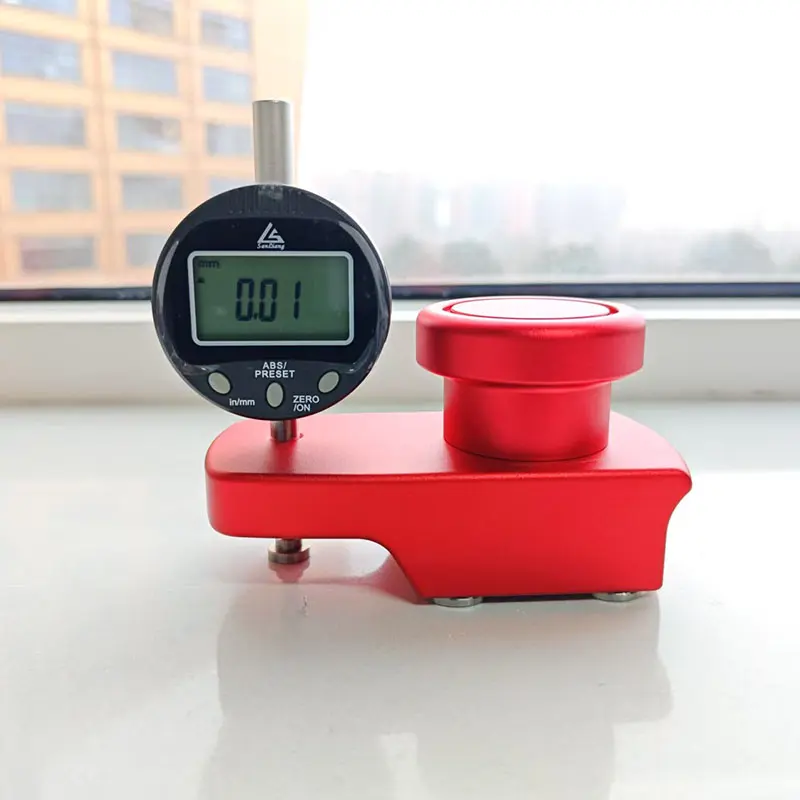

3. Maintenance & Storage

Remove the battery when not in use. Store in a dry environment. Clean and lubricate parts regularly with a fine cotton cloth.

Frequently Asked Questions

How do I ensure the measurement starts from zero?

Before measurement, place the instrument on a flat reference surface and press the "Zero" or clear button to ensure the initial display is 0.00mm.

Can this gauge measure both hot melt and cold paint markings?

Yes, it is designed to measure the thickness of various road markings, including hot melt, cold paint, and other pavement coating materials.

What should I do if the display becomes blurry or fails?

This is usually caused by low battery power. Replace the battery with a new one and check if the battery contacts are clean.

Is the device waterproof for rainy day testing?

The instrument should be kept dry. It is recommended to use it on dry surfaces and store it in a moisture-free environment to protect the electronic dial indicator.

How often should the instrument be calibrated?

We recommend zero-point calibration before every use. A full technical calibration against standard gauge blocks should be performed annually or if data inconsistency is suspected.

Does it support switching between millimeters and inches?

Most models feature a unit conversion button that allows you to toggle between metric (mm) and imperial (inch) measurements easily.
